WW12RR006FTL

WALSIN  WW12RR006FTL  电流感应电阻器, 表面安装, WW12R系列, 0.006 ohm, 1 W, ± 1%, 1206 [3216公制]

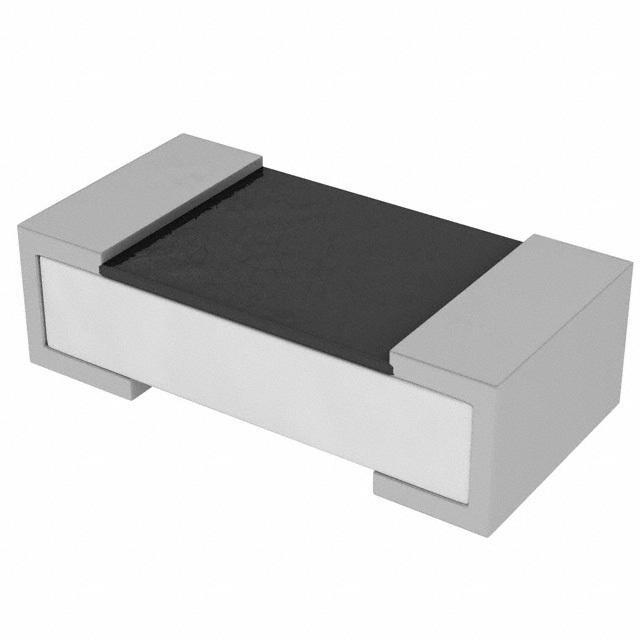

The WW12R series from Walsin are metal low ohm current sensing power chip resistors. These resistors are constructed in a high grade low resistive metal body.

.

Resistance values ranges from 1mohm to 15mohm

.

EIA 1206 case size

.

TCR value is ±70ppm/°C

.

Available in ±1%, ±5% tolerance

.

Operating temperature range of -55°C to 155°C

.

Operating current is 31.6A to 8.2A

.

High power rating and compact size

.

Reduced size of final equipment

.

High reliability and stability

.

Maximum power rating of 1W
