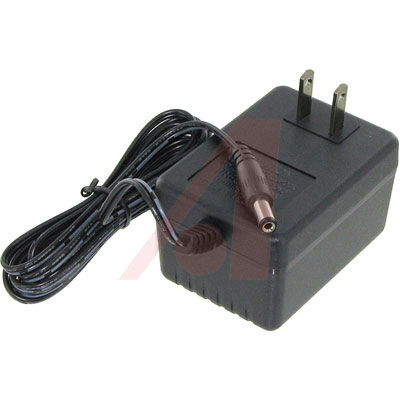

WDU6-600图片5
WDU6-600图片6
WDU6-600概述

TRIAD MAGNETICS WDU6-600 AC-DC Power Supply, External Plug In, Fixed, 1 Output, 120V, 7.5W, 6V

**WDU Series ** prepackaged wall plug-in power supplies decrease product design time. These plug-in power sources eliminate the need for internal power supply cooling devices, thereby reducing the noise level, size and weight of the end product. In addition, these compact power sources keep heat away from sensitive circuits, and supply a safer lower power output to the end product. Wall plug-in power sources are completely enclosed to prevent tampering. And since they carry many required agency listings, their use aids in gaining agency approvals. Offered in a wide range of popular voltages, the plug-in power sources are available in AC/DC unregulated models with generous six foot cord lengths. Available in 60 Hz only.

WDU6-600中文资料参数规格
技术参数

频率 60 Hz

电源电压DC 120 V

额定电流 0.6 A

额定功率 3.6 W

输出接口数 1

输出电压 6 V

输出电流 0.6 A

输出功率 3.6 W

输入电压AC Max 120 v

输出功率Max 7.5 W

工作温度Max 40 ℃

工作温度Min -10 ℃

额定电压 120 VAC

输入电压AC 120 V

输入电压 120 VAC

封装参数

安装方式 Plug In

外形尺寸

长度 50.8 mm

宽度 41.3 mm

高度 41 mm

物理参数

工作温度 -10℃ ~ 40℃

其他

包装方式 Box

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买WDU6-600
型号: WDU6-600
制造商: Triad Magnetics
描述:TRIAD MAGNETICS WDU6-600 AC-DC Power Supply, External Plug In, Fixed, 1 Output, 120V, 7.5W, 6V
