WDU9-1200概述

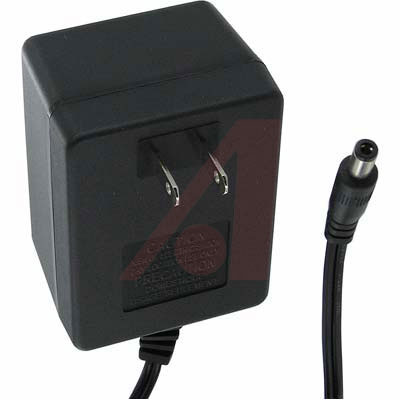

壁装式AC适配器 Wall Plug-In Pwr Supply, 9VDC@1200mA, cULus, Center POS: ***For Industrial and Commercial Use Only***

**WDU Series ** prepackaged wall plug-in power supplies decrease product design time. These plug-in power sources eliminate the need for internal power supply cooling devices, thereby reducing the noise level, size and weight of the end product. In addition, these compact power sources keep heat away from sensitive circuits, and supply a safer lower power output to the end product. Wall plug-in power sources are completely enclosed to prevent tampering. And since they carry many required agency listings, their use aids in gaining agency approvals. Offered in a wide range of popular voltages, the plug-in power sources are available in AC/DC unregulated models with generous six foot cord lengths. Available in 60 Hz only.

WDU9-1200中文资料参数规格
技术参数

频率 60 Hz

电源电压DC 120 V

额定电流 1.2 A

额定功率 10.8 W

输出接口数 1

输出电压 9 V

输出电流 1.2 A

输出功率 18.5 W

输入电压AC Max 120 v

输出电流Max 1.2 A

输出功率Max 18.5 W

工作温度Max 40 ℃

工作温度Min -10 ℃

额定电压 120 VAC

输入电压AC 120 V

输入电压 120 VAC

封装参数

安装方式 Plug In

外形尺寸

长度 65.09 mm

宽度 55.6 mm

高度 48 mm

电源线长度 1.83 m

物理参数

工作温度 -10℃ ~ 40℃

其他

产品生命周期 Active

包装方式 Bulk

制造应用 -

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8504409510

数据手册

在线购买WDU9-1200
型号: WDU9-1200
制造商: Triad Magnetics
描述:壁装式AC适配器 Wall Plug-In Pwr Supply, 9VDC@1200mA, cULus, Center POS: ***For Industrial and Commercial Use Only***
替代型号WDU9-1200
型号/品牌 代替类型 替代型号对比

WDU9-1200

Triad Magnetics

当前型号

当前型号

VEL12US090-US-JA

XP Power

功能相似

WDU9-1200和VEL12US090-US-JA的区别
