WDU75-300

WDU75-300图片1
WDU75-300图片2
WDU75-300图片3

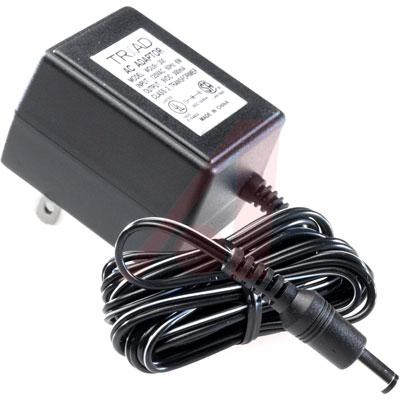

WDU75-300图片4
WDU75-300图片5
WDU75-300概述

Plug-In Adapter Single-OUT 7.5V 0.3A 2.25W

**WDU Series ** prepackaged wall plug-in power supplies decrease product design time. These plug-in power sources eliminate the need for internal power supply cooling devices, thereby reducing the noise level, size and weight of the end product. In addition, these compact power sources keep heat away from sensitive circuits, and supply a safer lower power output to the end product. Wall plug-in power sources are completely enclosed to prevent tampering. And since they carry many required agency listings, their use aids in gaining agency approvals. Offered in a wide range of popular voltages, the plug-in power sources are available in AC/DC unregulated models with generous six foot cord lengths. Available in 60 Hz only.

WDU75-300中文资料参数规格
技术参数

频率 60 Hz

额定电流 0.3 A

额定功率 2.25 W

输出接口数 1

输出电压 7.5 V

输出电流 0.3 A

输出功率 2.25 W

输出电流Max 0.3 A

输出功率Max 2.25 W

工作温度Max 40 ℃

工作温度Min -10 ℃

额定电压 120 VAC

输入电压 120 V

封装参数

安装方式 Plug In

外形尺寸

长度 42.86 mm

宽度 36.5 mm

高度 39 mm

物理参数

工作温度 -10℃ ~ 40℃

其他

产品生命周期 Active

包装方式 Carton

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

在线购买WDU75-300
型号: WDU75-300
制造商: Triad Magnetics
描述:Plug-In Adapter Single-OUT 7.5V 0.3A 2.25W
