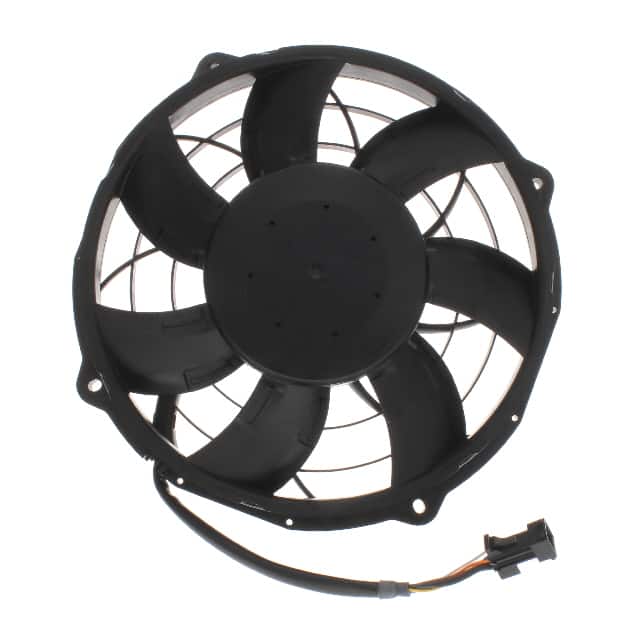

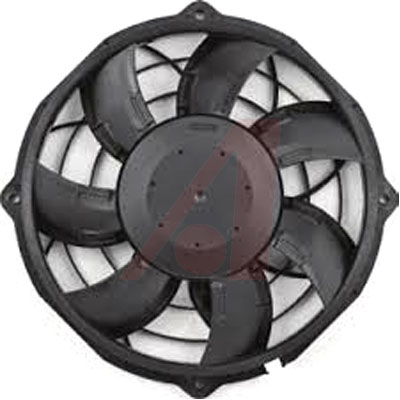

W3G300-BV12-41

直流风扇 EC Axial Fan

* Material: Wall ring: PA plastic, coloured black

Impeller: PA plastic, coloured black conforms to UL 94 HB

* Direction of rotation: Clockwise, seen on rotor

* Direction of air flow: “V", exhaust over struts

* Type of protection: Motor: IP 24 KM, Electronics: IP 66 / 69 K

* Insulation class: “B" in accordance with EN 60335-1

* Mounting position: Any

* Mode of operation: Continuous operation S1

* Bearings: Maintenance-free ball bearings

* Motor protection: Over temperature protection, reverse polarity and locked-rotor protection, load dump protection, under-voltage detection

* EMC requirements: VDE 0879-2, interference suppression grade 5

* Qualified to: DIN ISO 16750
