CAN Trigger and Decode Option for WaveSurfer Xs
**CAN Bus TD**
CANbus TD or TDM combines standard Teledyne LeCroy oscilloscope capabilities, CAN Bus triggering, and protocol decode in one test system. Now it’s simple to capture a specific CAN message or error frame and view protocol data on the same display as the CAN signal or analog signals. Understanding system problems and performance has never been this easy! Teledyne LeCroy CANbus TD or TDM, and a Teledyne LeCroy WaveRunner, WaveSurfer or WavePro 7 Zi Series oscilloscope, is the solution for locating CAN Bus anomalies and debugging CAN Bus controllers and systems.
**Key Features**
* Comprehensive CAN trigger and decode
* Flexible triggering for data, error and remote frames

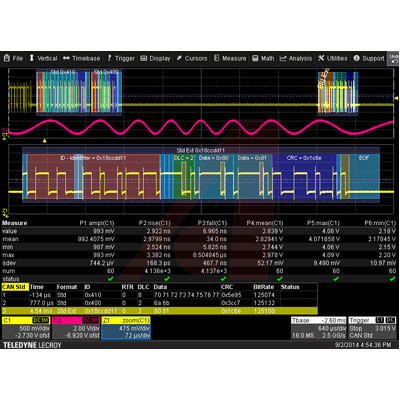

* Easily view decoded signals with intuitive color-coded decode overlay
* Supports CAN signals up to 1 Mb/s
* Powerful conditional ID and Data triggering in range, out of range, less than, greater than
* Convenient table display with “zoom to byte" capability
* Quick search to identify specific message packets
* Simultaneously decode up to 4 busses including CAN or other protocols
