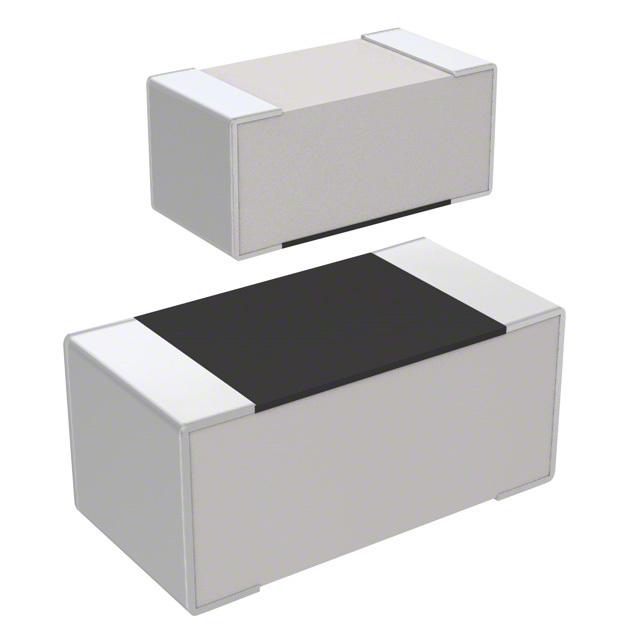

SMD片式电阻, 2010 [5025公制], 0.01 ohm, 厚膜, 1 W
The WW20W series resistors from Walsin are thick film power low ohm chip resistors. These resistors are constructed in a high grade ceramic body aluminium oxide. The WW20W series resistors are used in power supply, PDA, digital meter, computer, battery charger and DC to DC power converter.
-
.
-
Resistance range includes E24 decade values 0.010 ohm to 0.910 ohm
-
.
-
EIA 2010 case size
-
.
-
±1000ppm/°C, ±600ppm/°C, ±200ppm/°C and ±100ppm/°C TCR values
-
.
-
Available in ±1% and ±5% tolerance
-
.
-
Reduced size of final equipment
-
.
-
High power rating and low TCR
-
.
-
High reliability and stability
-
.
-
Maximum power dissipation of 750mW at Tamb=70°C
-
.
-
Operating temperature range from -55°C to 155°C
