WSL2512R0150FEA18

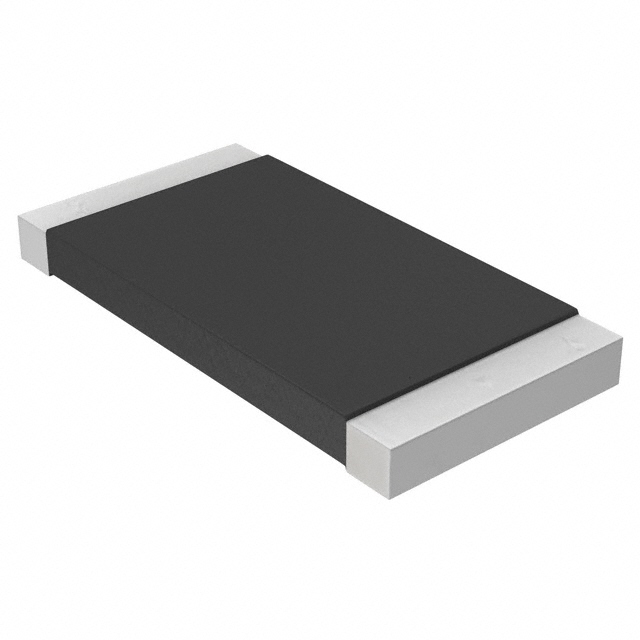

WSL2512R0150FEA18图片1
WSL2512R0150FEA18图片2
WSL2512R0150FEA18图片3
WSL2512R0150FEA18图片4
WSL2512R0150FEA18概述

SMD电阻器/芯片电阻器

SMD器/芯片电阻器


立创商城:
15mΩ ±1% 2W


艾睿:
Use this WSL2512R0150FEA18 fixed single surface-mount resistor from Vishay to obtain a visually clean layout. This dependable part has a power rating of 2 W. This product has a resistance value of 15m Ohm. It is also complete with current sensing technology. Its temperature coefficient is ±75 ppm/°C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This device is made with metal strip technology. This product is 6.35 mm long, 0.64 mm tall and 3.18 mm deep. It has a tolerance of 1%. This part has an operating temperature of -65 to 170 °C.


安富利:
WSL-2512-18 .015 1% EA E3


Verical:
Res Metal Strip 2512 0.015 Ohm 1% 2W ±75ppm/C Sulfur Resistant Pad SMD Automotive T/R


Win Source:
RES SMD 0.015 OHM 1% 2W 2512


WSL2512R0150FEA18中文资料参数规格
技术参数

容差 ±1 %

额定功率 2 W

产品系列 Vishay_Dale

电阻 0.015 Ω

阻值偏差 ±1 %

工作温度Max 170 ℃

工作温度Min -65 ℃

封装参数

安装方式 Surface Mount

封装公制 6432

封装 2512

外形尺寸

长度 6.35 mm

宽度 3.18 mm

高度 0.64 mm

封装公制 6432

封装 2512

物理参数

工作温度 -65℃ ~ 170℃

温度系数 ±75 ppm/℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

WSL2512R0150FEA18引脚图与封装图
WSL2512R0150FEA18引脚图
WSL2512R0150FEA18封装图
WSL2512R0150FEA18封装焊盘图
在线购买WSL2512R0150FEA18
型号: WSL2512R0150FEA18
制造商: VISHAY 威世
描述:SMD电阻器/芯片电阻器
