WSL25124L000FEA18

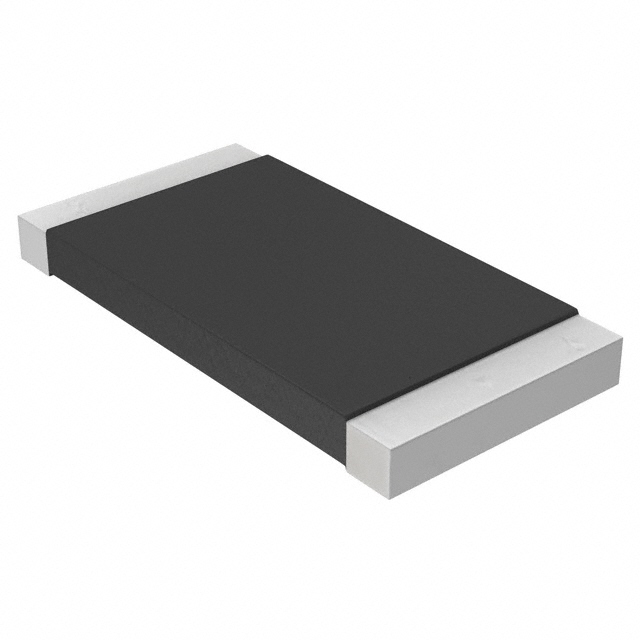

WSL25124L000FEA18图片1
WSL25124L000FEA18图片2
WSL25124L000FEA18图片3
WSL25124L000FEA18图片4
WSL25124L000FEA18图片5
WSL25124L000FEA18概述

2512 0.004Ω ±1% 2W ±150ppm/℃

RES 0.004 OHM 1% 2W 2512


立创商城:
4mΩ ±1% 2W


艾睿:
This is a WSL25124L000FEA18 fixed single surface-mount resistor from Vishay. This product has a resistance value of 4m Ohm. This part has a power rating of 2 W. It is also complete with current sensing technology. Its temperature coefficient is ±150 ppm/°C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This device utilizes metal strip technology. It has a tolerance of 1%. This product is 6.35 mm long, 0.64 mm tall and 3.18 mm deep. This part has an operating temperature of -65 to 170 °C.


安富利:
Res Metal Strip 2512 0.004 Ohm 1% 2W ±150ppm/°C Molded SMD SMD Embossed Plastic T/R


Verical:
Res Metal Strip 2512 0.004 Ohm 1% 2W ±150ppm/C Sulfur Resistant Pad SMD Automotive T/R


WSL25124L000FEA18中文资料参数规格
技术参数

容差 ±1 %

额定功率 2 W

产品系列 Vishay_Dale

电阻 0.004 Ω

阻值偏差 ±1 %

工作温度Max 170 ℃

工作温度Min -65 ℃

封装参数

封装公制 6432

封装 2512

外形尺寸

长度 6.4 mm

宽度 3.2 mm

高度 0.64 mm

封装公制 6432

封装 2512

物理参数

工作温度 -65℃ ~ 170℃

温度系数 ±150 ppm/℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

WSL25124L000FEA18引脚图与封装图
WSL25124L000FEA18引脚图
WSL25124L000FEA18封装图

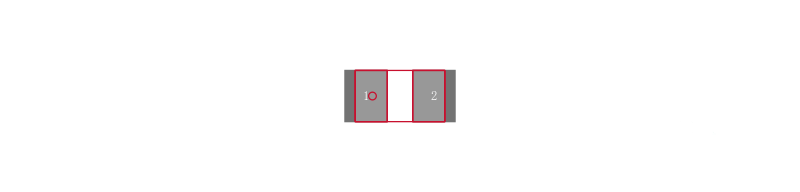

WSL25124L000FEA18封装焊盘图
在线购买WSL25124L000FEA18
型号: WSL25124L000FEA18
制造商: VISHAY 威世
描述:2512 0.004Ω ±1% 2W ±150ppm/℃
