蓝牙5.0模块, ARM Cortex M4, 1.7V至3.6V电源, 1Mbps, 3.5dBm功率, -93dBm灵敏度

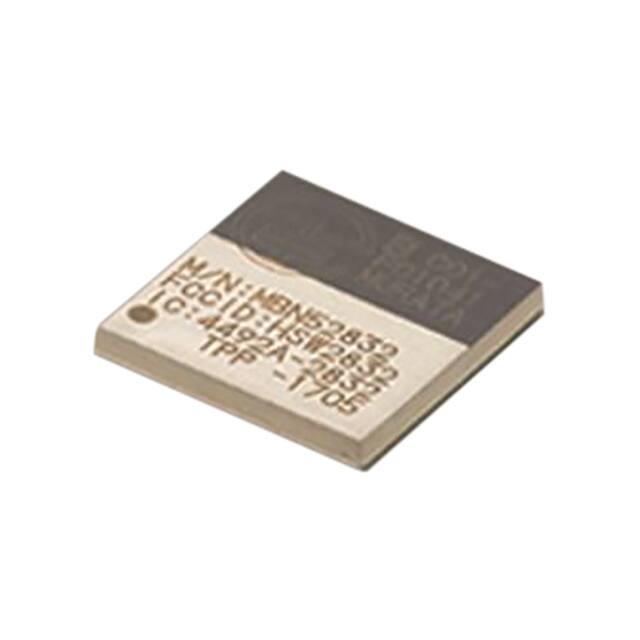

The from Murata is a Bluetooth low energy module. It enables ultra-low power connectivity for data communication. The product integrates Nordic Bluetooth Low Energy IC, RF front end and crystal. This is an ideal solution for Internet of Things IOT application.
-
.
-
Bluetooth® v5 higher throughput, increased broadcast capacity
-
.
-
ANT, NFC tag
-
.
-
Nordic nRF52832 Bluetooth Smart® with built-in ARM cortex M4 core with 64KB RAM and 512KB flash
-
.
-
Bluetooth/ANT antenna configuration: on-board PCB antenna, supports external antenna from pin pad
-
.
-
Maximum transmit power: +4dBm @ antenna port LDO mode
-
.
-
Receive sensitivity: -93dBm at 1Mbps LDO mode
-
.
-
Power consumption TX 7mA @ 3.5dBm DCDC mode, RX 6mA DCDC mode
-
.
-
20 GPIO, 5 ADC, UART, SPI master and slave, I2C, PWM and debug SWD interfaces
-
.
-
Operating temperature range from -40°C to 85°C
-
.
-

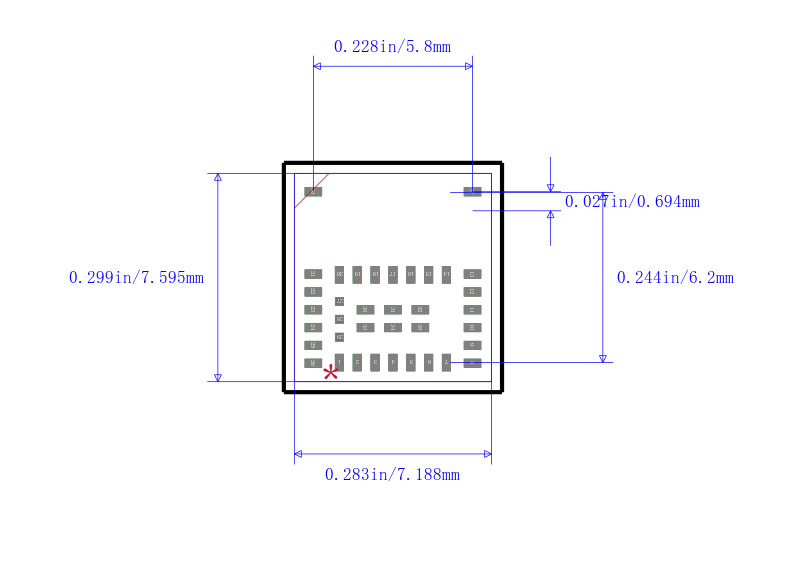

Dimension of 7.4mm x 7mm x 0.9mm
