M30圆柱形 M30 螺纹金属外壳 3 线长度；40.6mm，2 线长度；50mm ### Osi Optimum 接近传感器嵌入式安装感应式接近传感器，适合基本和重复应用 2m 电缆预接线型号（密封等级 IP68） M12 连接器版本（IP67 密封等级） LED 输出状态指示，带短路保护

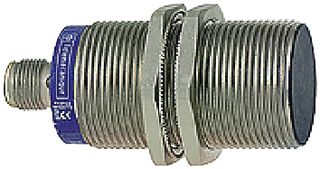

Proximity Sensor Inductive NO PNP 1cm 12V to 24V
Search Keywords:
range of product:OsiSense XS, series name:general purpose, sensor type:inductive proximity sensor, product specific application:-, sensor name:XS5, sensor design:cylindrical M30, size:54.3 mm, body type:fixed, detector flush mounting acceptance:flush mountable, material:metal, type of output signal:discrete, wiring technique:3-wire, [Sd] sensing range:> 8...15 mm, [Sn] nominal sensing distance:10 mm, discrete output function:1 NO, output circuit type:DC, discrete output type:PNP, analogue output range:, electrical connection:male connector M12 4 pins, cable length:, [Us] rated supply voltage:12...24 V DC with reverse polarity protection, switching capacity in mA:<= 200 mA DC with overload and short-circuit protection, IP degree of protection:IP67 conforming to IEC 60529,IP69 K conforming to DIN 40050, sale per indivisible quantity:
