XS1N18PA349D

TELEMECANIQUE SENSORS  XS1N18PA349D  电感性传感器, 24VDC, 200mA, XS+选件

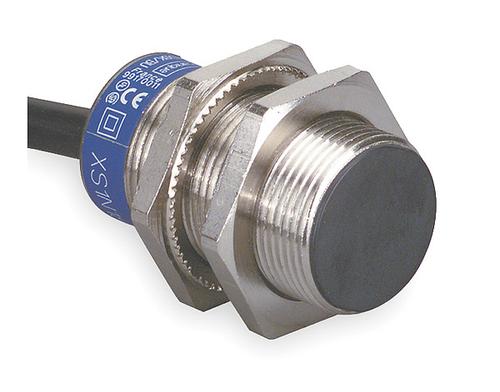

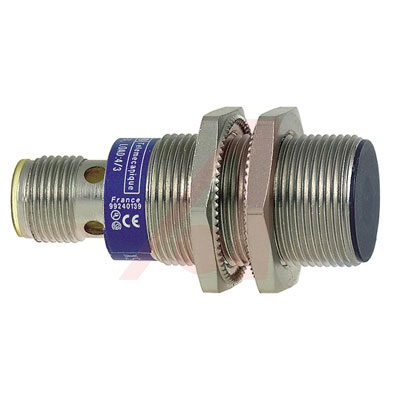

The from Schneider is an OsiSense XS inductive proximity sensor for general purpose applications. It is a cylindrical, flush mountable, 3wire DC solid state output inductive proximity sensor for non contact sensing of metal objects up to 10mm distance.

.

Standard cylindrical M18

.

Discrete output function is 1NO

.

Discrete output type is PNP

.

Male connector M12 with 4 pins

.

Rated supply voltage range from 12VDC to 24VDC with reverse polarity protection

.

Switching capacity is 200mA DC with overload and short circuit protection

.

IP degree of protection of IP69 K conforming to DIN 40050 and IP67 conforming to IEC 60529

.

Compliant to UL, CSA standard

.

50mm size
