TOREX XC6210B152MR 固定电压稳压器, LDO, 1.5V至6V, 90mV压差, 1.5V输出, 700mA输出, SOT-23-5
The is a 1.5V fixed output low noise high current low-dropout LDO Linear Regulator fabricated using CMOS process. The device features a voltage reference, an error amplifier, a current limiter and a phase compensation circuit plus a driver transistor. With a low ON resistance driver transistor built into, batteries can be used until input-output voltage differential is minimal and can accordingly be used for a longer time. The series is also compatible with low ESR ceramic capacitors which give added output stability. The current limiters fold-back circuit also operates as the output current limiter and the output pin protection. The ICs internal regulator circuit can be placed in stand-by mode via the CE function. In the stand-by mode, power consumption is greatly reduced.
输出接口数 1
输出电压 1.5 V
输出电流 700 mA
针脚数 5
跌落电压 90 mV
输入电压Max 6 V
输入电压Min 1.5 V
工作温度Max 85 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 5

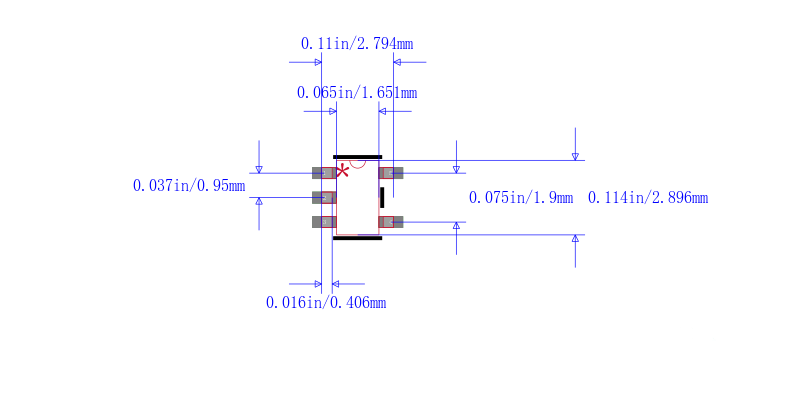

封装 SOT-23
长度 2.9 mm
宽度 1.6 mm
封装 SOT-23
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 计算机和计算机周边, Power Management, 成像, 电源管理, Imaging, Video & Vision, 视频和目视, 消费电子产品, Audio, 音频, Consumer Electronics, Computers & Computer Peripherals
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
