TOREX XC6210B332MR 固定电压稳压器, LDO, 1.5V至6V, 50mV压差, 3.3V输出, 700mA输出, SOT-23-5
The is a high current, high speed LDO Regulator IC fabricated using Torexs CMOS process. With a low ON resistance driver transistor built into, batteries can be used until input-output voltage differential is minimal and can accordingly be used for a longer time. It is compatible with low ESR ceramic capacitors which give added output stability. The current limiters fold-back circuit also operates as the output current limiter and the output pin protection.
- .
- 0.8 to 5.0V Output voltage range
- .
- ±2% Highly accurate
- .
- 35µA Typical Low power consumption
- .
- 60dB at 1kHz High ripple rejection
工作电压 1.5V ~ 6V
输出接口数 1
输出电压 3.3 V
输出电流 700 mA
针脚数 5
耗散功率 600 mW
跌落电压 50 mV
输入电压Max 6 V
输入电压Min 1.5 V
输出电流Max 0.8 A
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 600 mW
精度 2 %
输出通道数 1
电源电压Min 1.5 V
输入电压 ≤6 V
安装方式 Surface Mount
引脚数 5

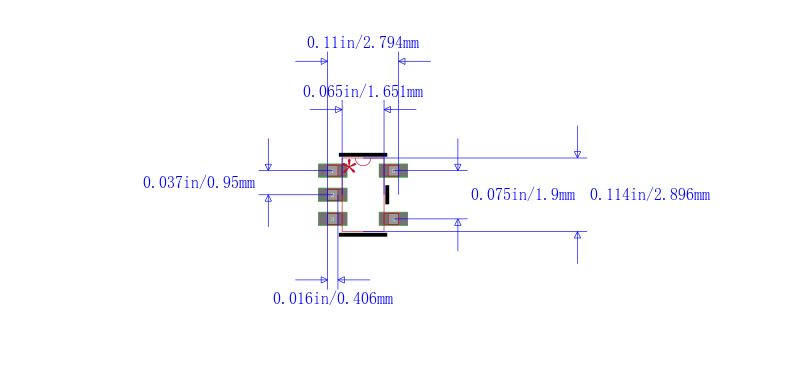

封装 SOT-23-5
封装 SOT-23-5
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Power Management, 消费电子产品, Consumer Electronics, Power Management, Consumer Electronics, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
ECCN代码 EAR99
