XC6222D331MR-G

TOREX  XC6222D331MR-G  固定电压稳压器, LDO, 1.7V至6V, 120mV压差, 3.3V输出, 700mA输出, SOT-25-5

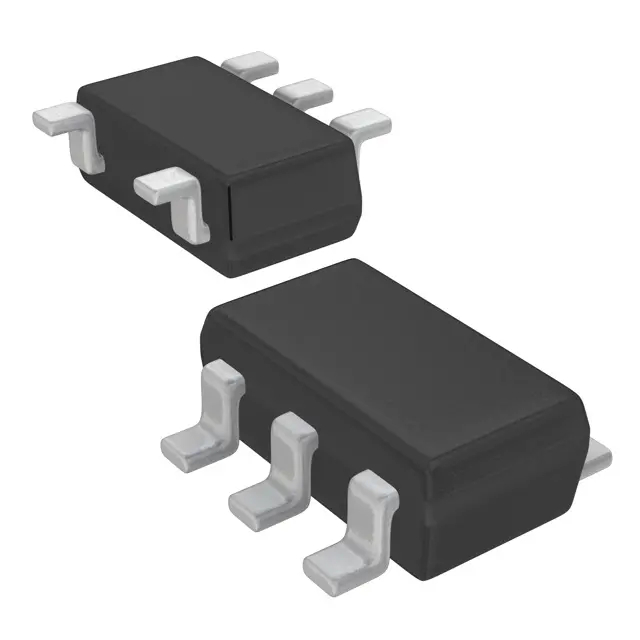

The is a fixed output, highly accurate and high speed low dropout LDO regulator in 5 pin SOT-25 package. It consists of voltage reference, error amplifier, driver transistor, current limiter, thermal protection circuit, reverse current protection circuit and phase compensation circuit. The CE pin ON/OFF control function enables the entire circuit to be placed in standby state by inputting low level signal to CE pin. Overcurrent protection and thermal protection circuits are integrated. The protection circuit starts to operate when either output current reaches the current limit level or junction temperature reaches the temperature limit.

.

Fixed output voltage of 3.3V

.

700mA output current

.

Dropout voltage of 120mV at 300mA output current

.

Operating voltage range from 1.7V to 6V

.

Low power consumption of 100µA

.

Standby current is 0.1µA or lower

.

High ripple rejection of 65dB at 1KHz

.

Operating temperature range from -40°C to 85°C

.

Low ESR output capacitor
