TOREX XC6216DC02PR 固定电压稳压器, LDO, 2V至28V, 650mV压差, 12V输出, 150mA输出, SOT-89-3
The is a 12V fixed output low power Linear Regulator with 28V of operation voltage. The device consists of a voltage reference, an error amplifier, a current limiter, a thermal shutdown circuit and a phase compensation circuit plus a driver transistor. The output stabilization capacitor CL is also compatible with low ESR ceramic capacitors. The over current protection circuit and the thermal shutdown circuit are built-in. These two protection circuits will operate when the output current reaches current limit level or the junction temperature reaches temperature limit level. The CE function enables the output to be turned off and the IC becomes a stand-by mode resulting in greatly reduced power consumption.
输出接口数 1
输出电压 12 V
输出电流 150 mA
针脚数 3
耗散功率 1000 mW
跌落电压 650 mV
输入电压Max 28 V
输入电压Min 2 V
输出电流Max 150 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 1000 mW
精度 2 %
电源电压Max 28 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 3

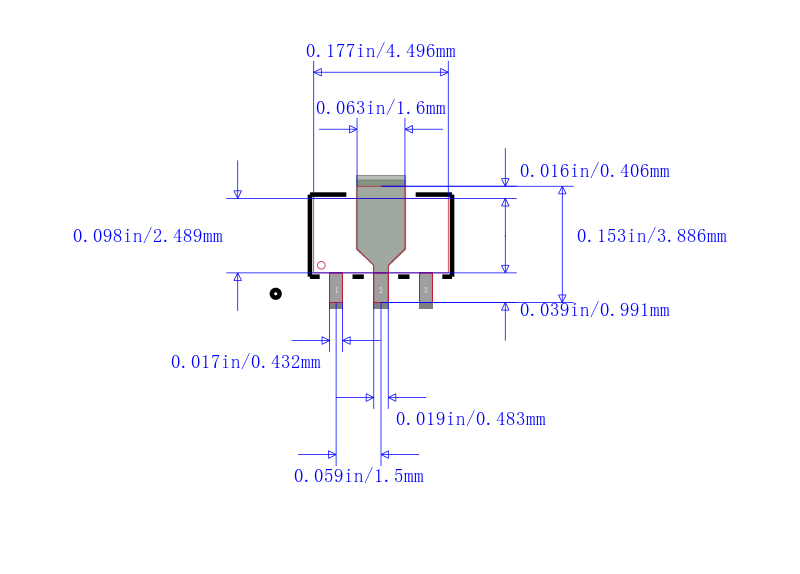

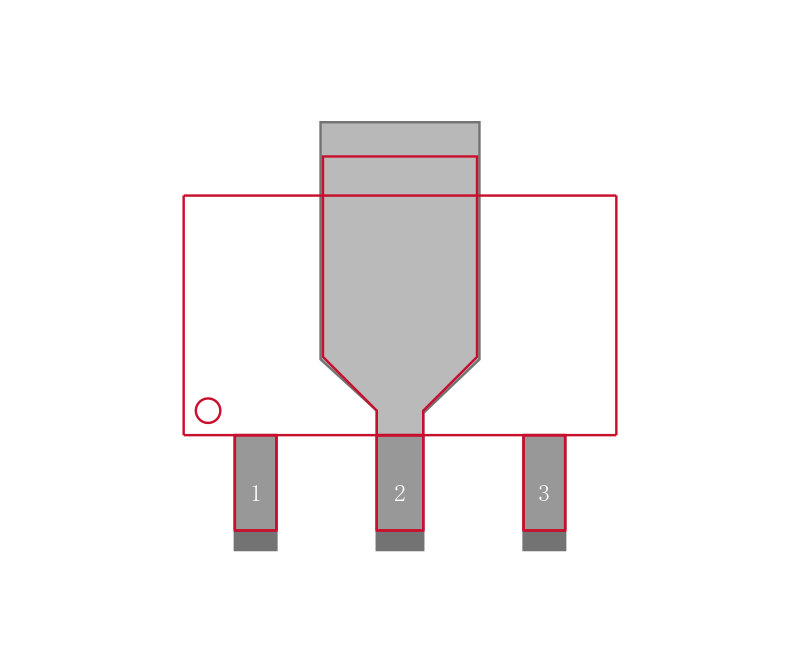

封装 SOT-89
封装 SOT-89
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 计算机和计算机周边, 通信与网络, 便携式器材, Computers & Computer Peripherals, Consumer Electronics, 电源管理, Power Management, Audio, 消费电子产品, 音频, Communications & Networking, Portable Devices
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
XC6216DC02PR Torex Semiconductor 特瑞仕 | 当前型号 | 当前型号 |
XC6216DC02FR 特瑞仕 | 完全替代 | XC6216DC02PR和XC6216DC02FR的区别 |
XC6216BC02MR 特瑞仕 | 功能相似 | XC6216DC02PR和XC6216BC02MR的区别 |
XC6216BC02MR-G 特瑞仕 | 功能相似 | XC6216DC02PR和XC6216BC02MR-G的区别 |
