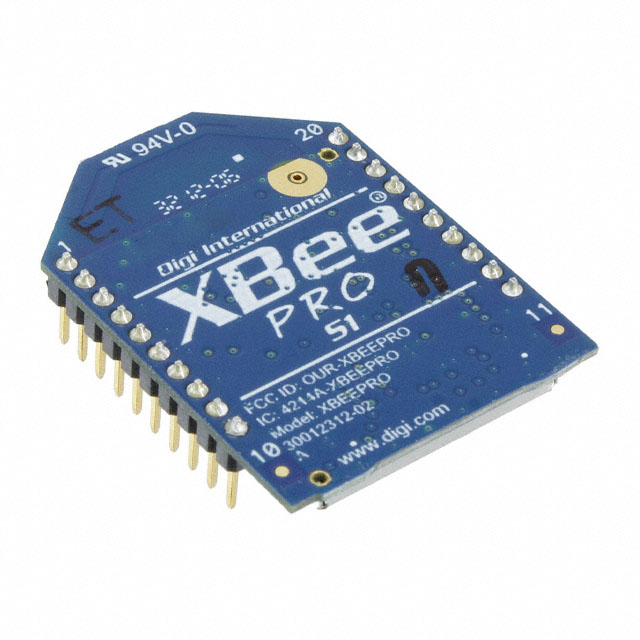

XBP24-API-001

XBEE PRO 802.15.4 0.063W1/16W PCB

The modules is engineered to meet IEEE 802.15.4 standards and support the unique needs of, low power wireless sensor networks. This module requires minimal power and provides reliable delivery of data between devices. This module operates within the ISM 2.4GHz frequency band and are pin for pin compatible with each other.

.

Indoor/urban: up to 30m

.

Outdoor line of sight: up to 100m

.

Transmit power: 1mW 0 dBm

.

Receiver sensitivity: -92dBm

.

Each direct sequence channels has over 65,000 unique network addresses available

.

Source/destination addressing

.

Point to point, point to multipoint and peer to peer topologies supported

.

Coordinator/end service operations

.

Analog to digital conversion, digital I/O

.

I/O line passing

.

No configuration necessary for out of box RF communications

.

AT and API command modes for configuring module parameters

.

Extensive command set

.

Small form factor
