XB24CZ7UIS-004

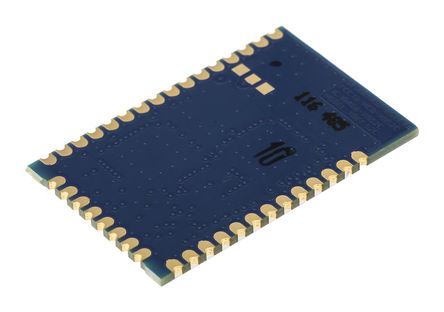

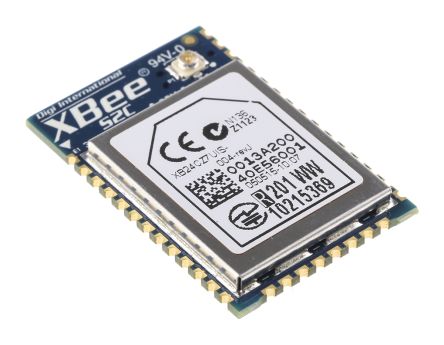

XBee ZigBee RF ModuleThe XBee ZigBee RF module operates in the 2.4GHz ISM Band and allows the formation of a mesh network. With its high receiver sensitivity it can provide long-range line-of-sight communication for up to 1200m.Carrier frequency: 2.4GHz ISM band with 16 channels RF Power Output: +5dBm, +8dBm Boost mode Receiver Sensitivity: -102dBm Boost mode @ 1% PER Interference control: Direct Sequence Spread Spectrum DSSS, Packet Retry/Acknowledgement OTA Date Rate: up to 250kbps Host communication: serial UART with RTS/CTS flow control, SPI Supported network topologies: Point-to-Point, Point-to-Multipoint, Peer-to-Peer & Mesh Protocol: ZigBee PRO 2007, HA-Ready with support for binding/multicasting AES-128 encryption Antenna: RF Pad RS 719-3840, External via U.FL RS 719-3843, PCB RS 719-3831 4 channel 10-bit ADC 15 x GPIO pins Power supply: +2.1V to +3.6Vdc Operating temperature range: -40 to +85°C Dimensions: 22 x 34 x 3mm SMT Applications: Wireless sensor networks, long-range communication for the Internet of Things IoT ### 认可FCC, ETSI### WPAN IEEE 802.15.4 - Digi International

is manufactured by and is categorized in the RF Transceiver Modules category. XB24CZ7UIS-004 is described as RF TXRX MODULE 802.15.4 U.FL ANT. Perfect Parts is a supplier of RF/IF and RFID and other Semiconductors.

欧时:
### XBee ZigBee RF ModuleThe XBee ZigBee RF module operates in the 2.4GHz ISM Band and allows the formation of a mesh network. With its high receiver sensitivity it can provide long-range line-of-sight communication for up to 1200m.Carrier frequency: 2.4GHz ISM band with 16 channels RF Power Output: +5dBm, +8dBm Boost mode Receiver Sensitivity: -102dBm Boost mode @ 1% PER Interference control: Direct Sequence Spread Spectrum DSSS, Packet Retry/Acknowledgement OTA Date Rate: up to 250kbps Host communication: serial UART with RTS/CTS flow control, SPI Supported network topologies: Point-to-Point, Point-to-Multipoint, Peer-to-Peer & Mesh Protocol: ZigBee PRO 2007, HA-Ready with support for binding/multicasting AES-128 encryption Antenna: RF Pad RS 719-3840, External via U.FL RS 719-3843, PCB RS 719-3831 4 channel 10-bit ADC 15 x GPIO pins Power supply: +2.1V to +3.6Vdc Operating temperature range: -40 to +85°C Dimensions: 22 x 34 x 3mm SMT Applications: Wireless sensor networks, long-range communication for the Internet of Things IoT ### 认可FCC, ETSI### WPAN IEEE 802.15.4 - Digi International

e络盟:
射频收发器模块, DSSS调制, 250Kbps, 2.4GHz, -102dBm, 2.1V至3.6V, SPI, UART

艾睿:
XBEE Zigbee Embedded Surface Mount RF Modules With U.FL Antenna

安富利:
XBee ZigBee Module 6.3MW 2400MHz 250/1000Kbps SMD UFL Antenna Connector

富昌:
XBee® ZB SMT 250 kbps 1200 m RF Module w/ U.Fl Antenna Connector

Verical:
ZigBee 2400MHz 1000Kbps SMD

Win Source:
RX TXRX MODULE 802.15.4 U.FL SMD / 802.15.4 Zigbee® Transceiver Module 2.4GHz Antenna Not Included, U.FL Surface Mount
