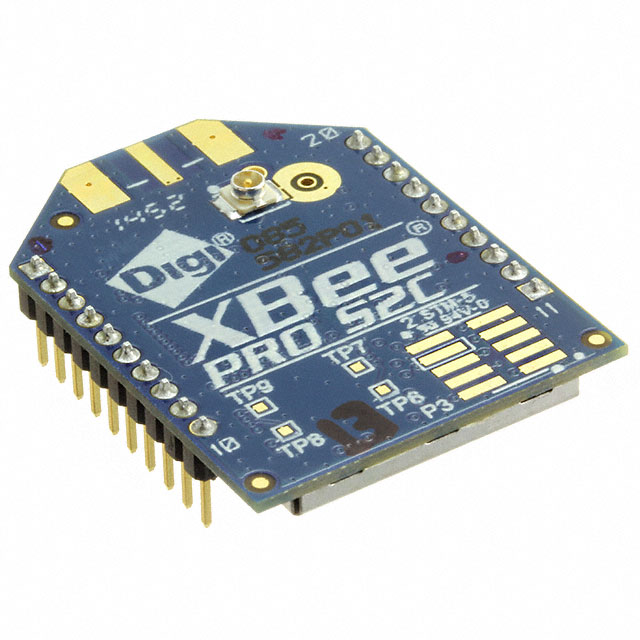

XBP24CZ7UIT-004

XBee ZB S2C TH U.FL 天线

The from is a through hole mount, standard XBee-PRO® S2C ZigBee RF module with U.FL connector for OEM. Embedded ZigBee module provides OEMs with a simple way to integrate mesh technology into their application. It is ideal for applications in the energy and controls markets where manufacturing efficiencies are critical. The Serial Peripheral Interface SPI provides a high-speed interface and optimizes integration with embedded microcontrollers, lowering development costs and reducing time to market. Digi"s ZigBee compatible module is based on the Ember EM357 system on chip SoC radio ICs from SiliconLabs, utilizing 32bit ARM Cortex™ M3 processor. FCC, IC North America, RCM Australia and New Zealand regulatory approvals.

.

RF 250Kbps, serial up to 1Mbps data rate

.

Firmware upgrades via UART, SPI or over the air OTA

.

Indoor/urban range up to 300ft 90m, outdoor/RF line of sight range up to 2miles 3200m

.

Transmit power is 63mW +18dBm

.

Receiver sensitivity is -101dBm

.

ISM 2.4GHz frequency band, DSSS direct sequence spread spectrum interference immunity

.

4 10bit ADC inputs, 15 digital I/O, 128bit AES encryption

.

Operating temperature range from -40°C to +85°C, supply voltage from 2.7V to 3.6V

.

Dimension is 0.960inch x 1.297inch 2.438cm x 3.294cm

.

Transmit current is 120mA at 3.3VDC and receive current is 31mA at 3.3VDC
