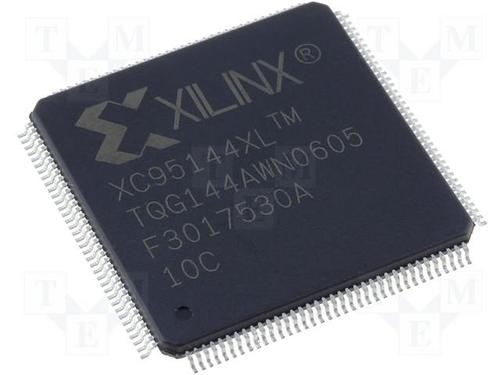

XC95144XL-10TQG144C

XILINX  XC95144XL-10TQG144C  芯片, CPLD, 144宏单元, 3.3V, 144TQFP

The is a high-performance Flash CPLD IC targeted for high-performance, low-voltage applications. It is comprised of eight 54V18 function blocks, providing 3200 usable gates with propagation delays of 5ns. Power dissipation in CPLDs can vary substantially depending on the system frequency, design application and output loading. To help reduce power dissipation, each macro cell in a XC9500XL device may be configured for low-power mode from the default high-performance mode. In addition, unused product-terms and macro cells are automatically deactivated by the software to further conserve power.

.

Fast concurrent programming

.

Slew rate control on individual outputs

.

Enhanced data security

.

Excellent quality and reliability

.

0 to 70°C Operating temperature range

ESD sensitive device, take proper precaution while handling the device.
