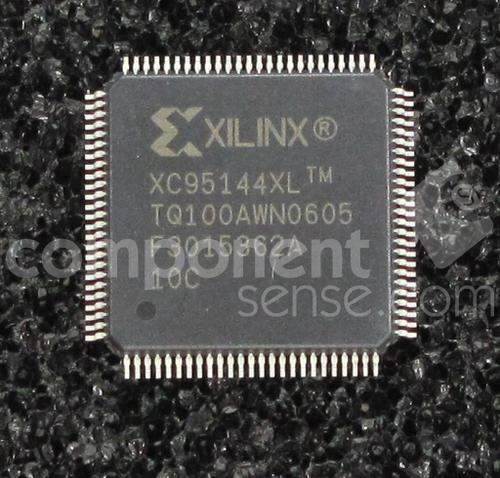

XC95144XL-10TQ100C

CPLD, FLASH, 144, 81 输入, TQFP, 100 引脚, 100 MHz

* Optimized for high-performance 3.3V systems * 5 ns pin-to-pin logic delays, with internal system frequency up to 208 MHz * Small footprint packages including VQFPs, TQFPs and CSPs Chip Scale Package * Pb-free available for all packages * Lower power operation * 5V tolerant I/O pins accept 5V, 3.3V, and 2.5V signals * 3.3V or 2.5V output capability * Advanced 0.35 micron feature size CMOS FastFLASH technology * Advanced system features * In-system programmable * Superior pin-locking and routability with FastCONNECT II switch matrix * Extra wide 54-input Function Blocks * Up to 90 product-terms per macrocell with individual product-term allocation * Local clock inversion with three global and one product-term clocks * Individual output enable per output pin with local inversion * Input hysteresis on all user and boundary-scan pin inputs * Bus-hold circuitry on all user pin inputs * Supports hot-plugging capability * Full IEEE Std 1149.1 boundary-scan JTAG support on all devices * Four pin-compatible device densities * 36 to 288 macrocells, with 800 to 6400 usable gates * Fast concurrent programming * Slew rate control on individual outputs * Enhanced data security features * Excellent quality and reliability * 10,000 program/erase cycles endurance rating * 20 year data retention * Pin-compatible with 5V core XC9500 family in common package footprints
