XCF16PVOG48C

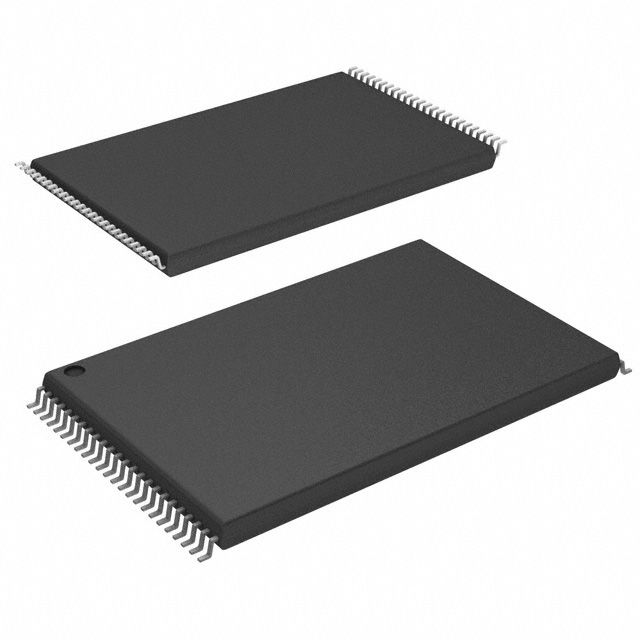

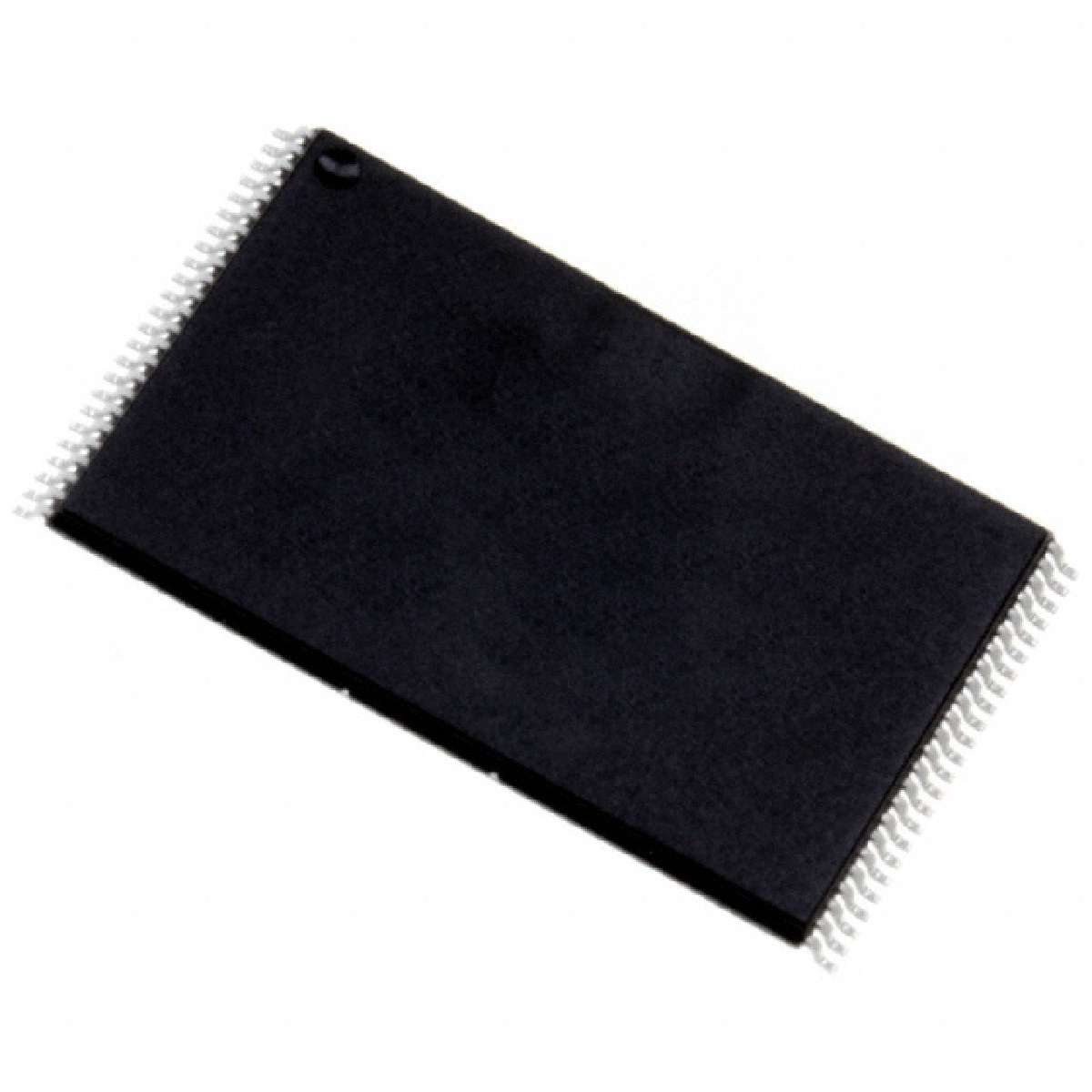

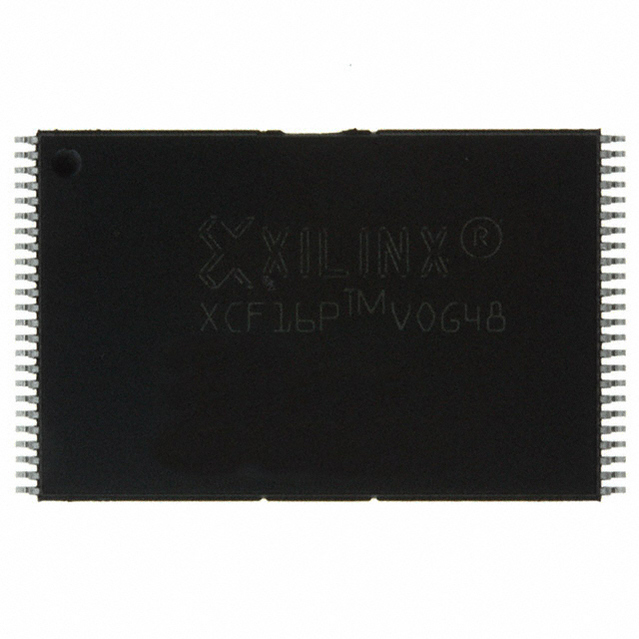

XILINX  XCF16PVOG48C  芯片, 存储器, PROM, 闪存平台, 16Mb, 48TSOP

The is a 16MB in-system programmable configuration Programmable Read-Only Memory PROM provides an easy-to-use and reprogrammable method for storing large FPGA configuration bit streams. The Platform Flash PROM series includes both the 3.3V XCFxxS PROM and the 1.8V XCFxxP PROM. This PROM supports Master Serial, Slave Serial, Master SelectMAP and Slave SelectMAP FPGA configuration modes. When driven from a stable, external clock, the PROM can output data at rates up to 33MHz.

.

Low-power advanced CMOS NOR flash process

.

Endurance of 20000 program/erase cycles

.

JTAG Command initiation of standard FPGA configuration

.

Cascadable for storing longer or multiple bit streams

.

Dedicated boundary-scan I/O power supply

.

I/O Pins compatible with voltage levels ranging from 1.8 to 3.3V
