XMOS XK-EVK-XE216 评估板, XE216-512多核微控制器, 3D 加速度计/磁力计, USB微型B供电

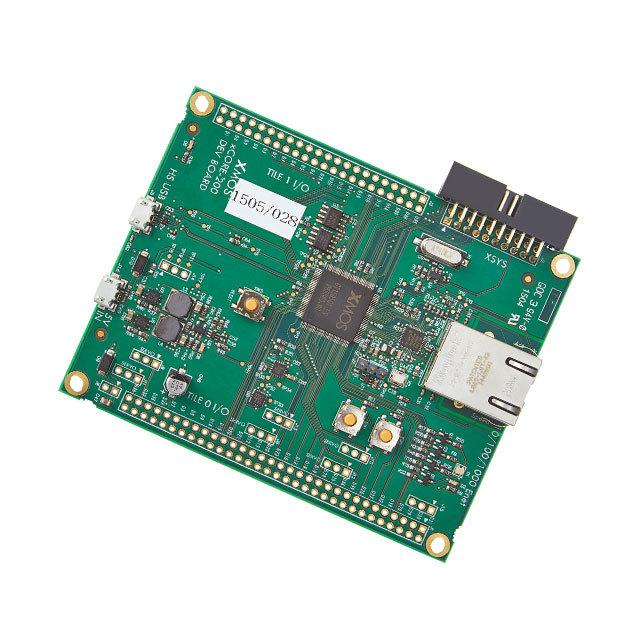

The is a xCORE-200 eXplorerKIT contains everything you need to start developing applications on the powerful xCORE-200 multicore microcontroller products from . The xCORE-200 eXplorerKIT features our XE216-512 xCORE-200 multicore microcontroller. This device has sixteen 32-bit logical cores that deliver up to 2000MIPS completely deterministically. The combination of 100/1000 Mbps Ethernet, high speed USB and 53 high performance GPIO make the xCORE-200 eXplorerKIT an ideal platform for functions ranging from robotics and motion control to networking and digital audio. The xCORE-200 eXplorerKIT also features a 3D accelerometer, a 3-axis gyroscope and six servo interfaces for rapid prototyping of motor and motion control projects. xCORE lets you software-configure the interfaces that you need for your system, so with xCORE-200 eXplorerKIT you can configure the board to match your exact requirements.
- .
- 16 Logical cores, up to 2000MIPS, 512kB SRAM
- .
- High speed USB interface
- .
- 53 High speed GPIO
- .
- 3D Accelerometer and magnetometer
- .
- Powered from USB micro-B connectors
- .
- Includes xTAG debug adaptor
