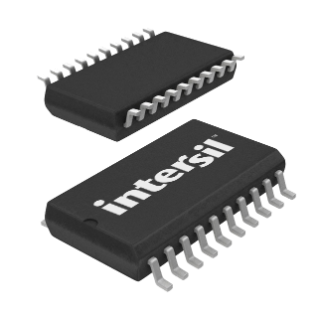

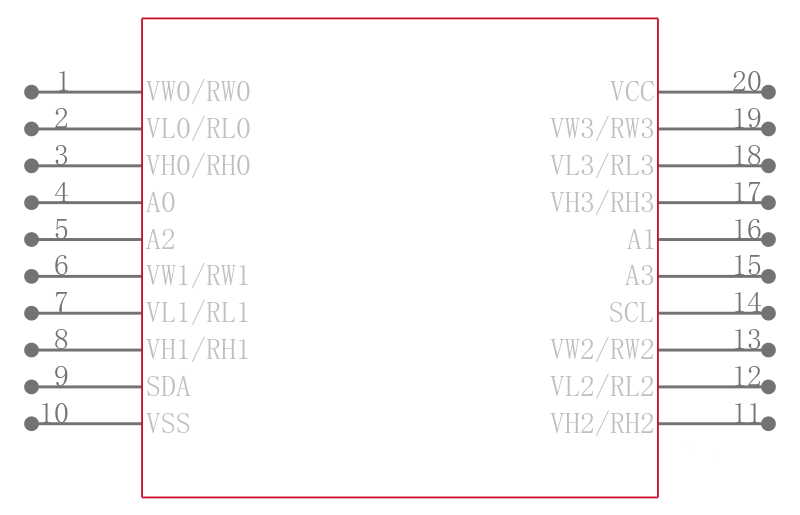

X9241AWSZ

INTERSIL  X9241AWSZ  非易失性数字电位器, 10 kohm, 四, 串行, 线性, ± 20%, 4.5 V

Quad Digitally Controlled Potentiometer XDCP™

The X9241A integrates four digitally controlled potentiometers XDCP on a monolithic CMOS integrated microcircuit.

The digitally controlled potentiometer is implemented using 63 resistive elements in a series array. Between each element are tap points connected to the wiper terminal through switches. The position of the wiper on the array is controlled by the user through the 2-wire bus interface. Each potentiometer has associated with it a volatile Wiper Counter Register WCR and 4 nonvolatile Data Registers DR0:DR3 that can be directly written to and read by the user. The contents of the WCR controls the position of the wiper on the resistor array through the switches. Power up recalls the contents of DR0 to the WCR.

Features

• Four potentiometers in one package

• 2-wire serial interface

• Register oriented format

   - Direct read/write/transfer of wiper positions

   - Store as many as four positions per potentiometer

• Terminal Voltages: +5V, -3.0V

• Cascade resistor arrays

• Low power CMOS

• High Reliability

   - Endurance–100,000 data changes per bit per register

   - Register data retention–100 years

• 16-bytes of nonvolatile memory

• 3 resistor array values

   - 2kΩ to 50kΩ mask programmable

   - Cascadable for values of 500Ω to 200kΩ

• Resolution: 64 taps each pot

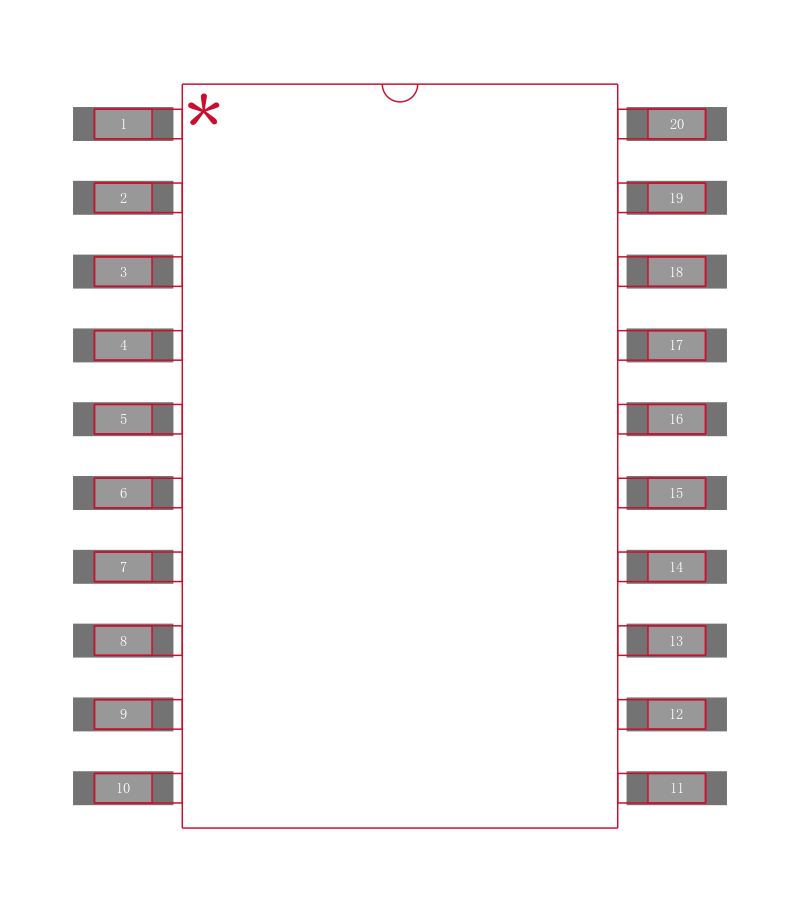

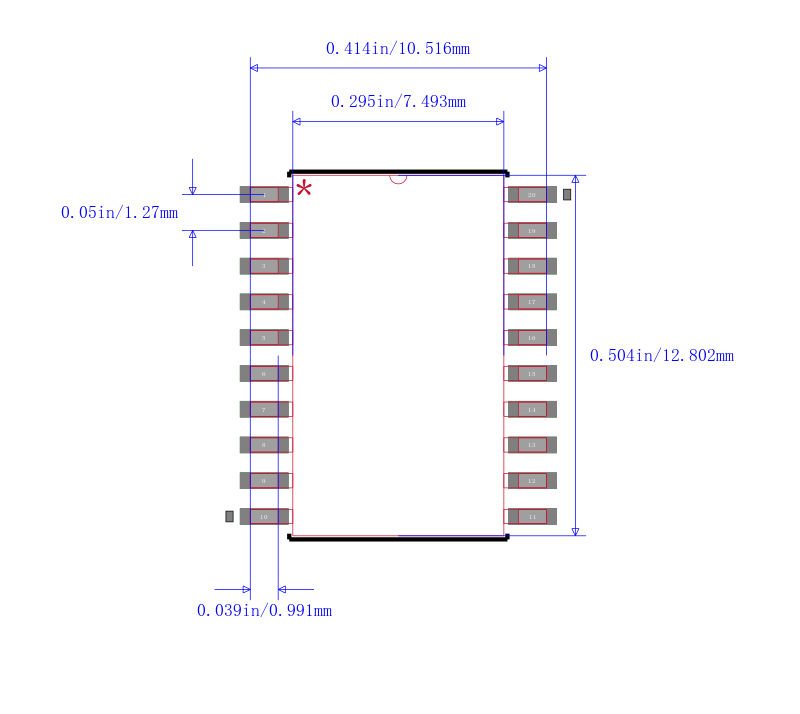

• 20 Ld plastic DIP, 20 Ld TSSOP and 20 Ld SOIC packages

• Pb-free plus anneal available RoHS compliant
