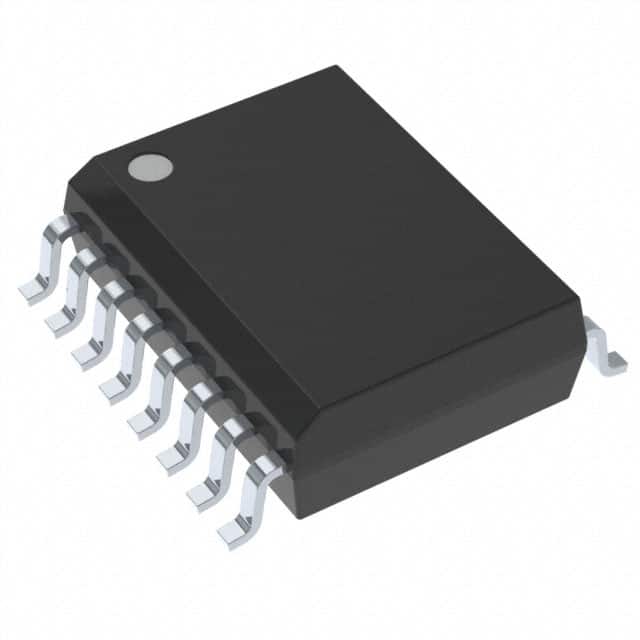

具有 10V 基准电压和可选输入/输出范围的电压电流转换器/变送器 16-SOIC -40 to 85
DESCRIPON
The XTR110 is a precision voltage-to-current converter designed for analog signal transmission. It accepts inputs of 0 to 5V or 0 to 10V and can be connected for outputs of 4 to 20mA, 0 to 20mA, 5 to 25mA and many other commonly used ranges.
FEATURES
●4mA TO 20mA TRANSMITTER
●SELECTABLE INPUT/OUTPUT RANGES:
0V to +5V, 0V to +10V Inputs
0mA to 20mA, 5mA to 25mA Outputs
Other Ranges
●0.005% MAX NONLINEARITY, 14 BIT
●PRECISION +10V REFERENCE OUTPUT
●SINGLE SUPPLY OPERATION
●WIDE SUPPLY RANGE: 13.5V to 40V
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
XTR110KU/1K TI 德州仪器 | 当前型号 | 当前型号 |
XTR110KU 德州仪器 | 类似代替 | XTR110KU/1K和XTR110KU的区别 |
XTR110KU/1KG4 德州仪器 | 类似代替 | XTR110KU/1K和XTR110KU/1KG4的区别 |
