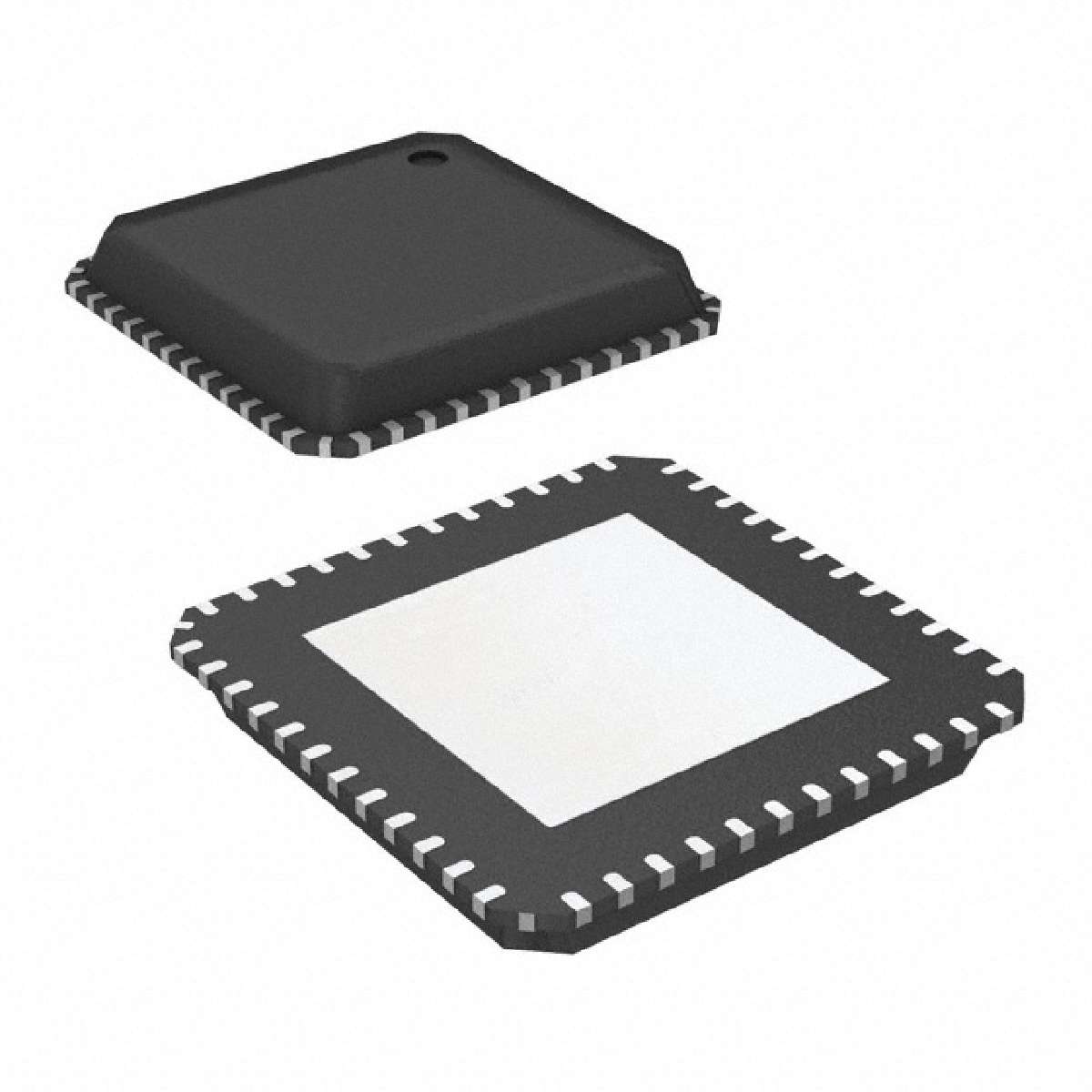

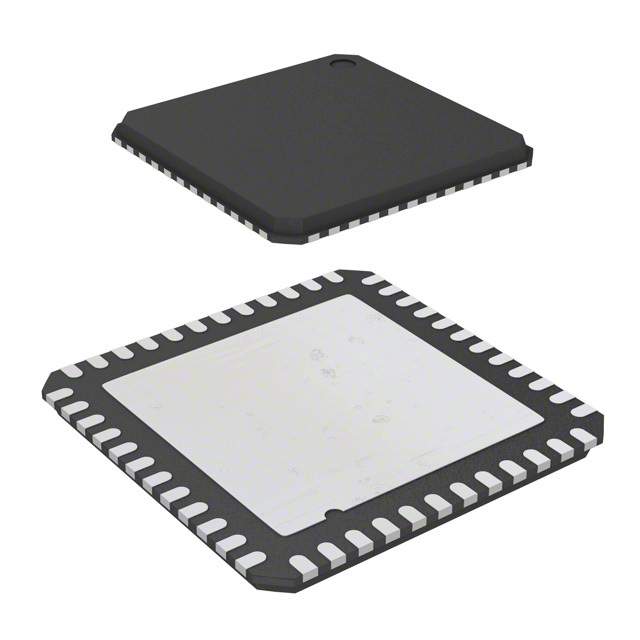

MCU 16Bit/32Bit CISC/DSP/RISC 160KB Flash 3.3V/5V Automotive 48Pin VQFN EP T/R
* High-performance CPU with five-stage pipeline and MPU * 16 priority levels providing 96 interrupt nodes * 64 to 160kB Flash incl. up to 32kB data Flash for EEPROM emulation, up to 12kB SRAM Memory content protection through Error Correction Code ECC * 12bit AD-converter with upto 19-channels, optional data preprocessing data reduction, range check, open wire detection, conversion time ~0.675µs * One 16-channel general purpose capture/compare units CCU2 * Up to two capture/compare units CCU6 for flexible PWM signal generation for any kind of motor control * Multi-functional general purpose timer unit with 5 timers * 4 serial flexible interface channels UART, LIN, SPI, I2C, I2S * On-chip CAN interface Rev. 2.0B active, upto 2 nodes with 32 message objects * On-chip system timer and on-chip real time clock * Programmable watchdog timer and oscillator watchdog * On-chip window watch dog with clock source separate from fsys * Up to 49 general purpose I/O lines with flexible pin assignment * On-chip bootstrap loader * On-chip debug support via Device Access Port DAP or JTAG interface * Single voltage supply of 3.3 to 5V64- pin green LQFP, 48 pin green VQFN package for space critical applications * Temperature range -40 to +125°C * Supported by a large range of development tools * Free of charge low level driver CAN, LIN, UARTUSIC
