XR2009ISO8MTR概述

EXAR XR2009ISO8MTR 运算放大器, 双路, 35 MHz, 2个放大器, 27 V/µs, 2.5V 至 5.5V, SOIC, 8 引脚

The is an ultra-low power dual Voltage Feedback Amplifier for use with battery-powered communication/computing systems. This amplifier use only 208µA of supply current and is designed to operate from a supply range of 2.5 to 5.5V. The input voltage range extends 300mV below the negative rail and 1.2V below the positive rail. The XR2009 offers superior dynamic performance with a 35MHz small signal bandwidth and 27V/µs slew rate. The combination of low power, high bandwidth and rail-to-rail performance make the XR2009.

.: 21nV/√Hz Input voltage noise

.: 13mA Linear output current

.: Green product

XR2009ISO8MTR中文资料参数规格

技术参数

供电电流 208 µA

电路数 2

针脚数 8

带宽 35 MHz

转换速率 27.0 V/μs

增益频宽积 20 MHz

输入补偿电压 5 mV

输入偏置电流 370 nA

工作温度Max 125 ℃

工作温度Min -40 ℃

3dB带宽 18 MHz

电源电压 2.5V ~ 5.5V

封装参数

安装方式 Surface Mount

引脚数 8

封装 SOIC-8

外形尺寸

封装 SOIC-8

物理参数

工作温度 -40℃ ~ 125℃

其他

包装方式 Cut Tape CT

制造应用 Test & Measurement, Consumer Electronics, Signal Processing, 便携式器材, Medical, 测试与测量, Portable Devices, 通信与网络, 消费电子产品, Communications & Networking, 医用, 信号处理

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

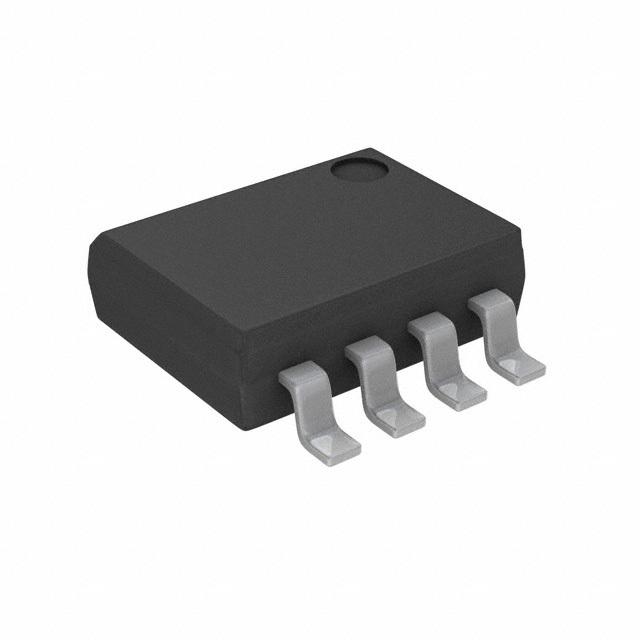

XR2009ISO8MTR引脚图与封装图
