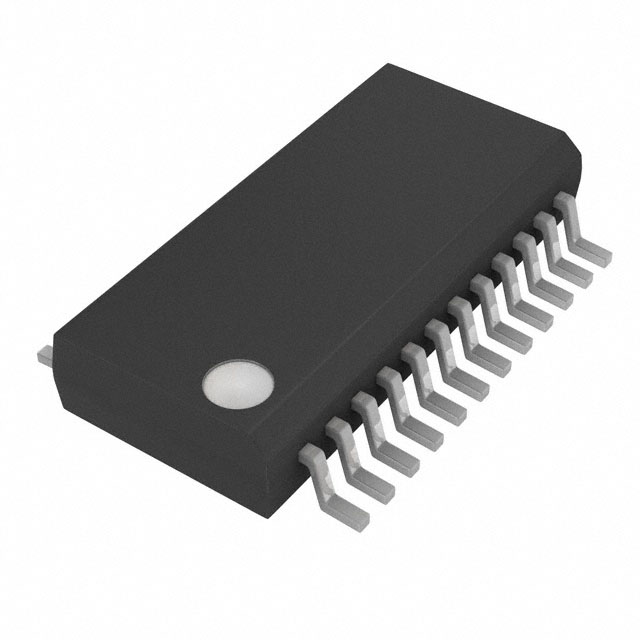

具有“智能”可编程信号调节的 4-20mA 两线制发送器 24-SSOP -40 to 85
The XTR108 is a "smart", programmable, 4-20mA, two-wire transmitter designed for temperature and bridge sensors. Zero, span, and linearization errors in the analog signal path can be calibrated via a standard digital serial interface, eliminating manual trimming. Non-volatile ex-ternal EEPROM stores calibration settings.
The all-analog signal path contains an input multiplexer, autozeroed programmable-gain instrumentation amplifier, dual programmable current sources, linearization circuit, voltage reference, sub-regulator, internal oscillator, control logic, and an output current amplifier. Programmable level shifting compensates for sensor DC offsets. Selectable up- and down-scale output indicates out-of-range and burn-out per NAMUR NE43. Automatic reset is initiated when supply is lost.
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
XTR108EA/2K5 TI 德州仪器 | 当前型号 | 当前型号 |
XTR108EA 德州仪器 | 完全替代 | XTR108EA/2K5和XTR108EA的区别 |
XTR108EAG4 德州仪器 | 功能相似 | XTR108EA/2K5和XTR108EAG4的区别 |
