AC-DC Power Supply Single-OUT 24V 21A 504W Medical 23Pin

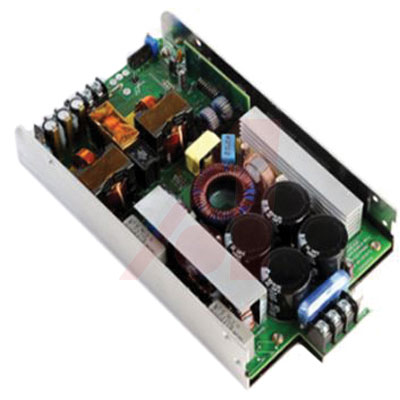

The Xsolo family of high efficiency, high reliability single output power supplies from provides up to an incredible 1008 W in an extremely compact package. Available in two package types, the high efficiency Xsolo delivers an incredible convection cooled 504 W in an open-frame U-channel form factor and up to 1008 W in an enclosed, fan cooled chassis. The Xsolo platform comes with a host of features including variable speed fan, 12 V/300 mA isolated bias supply, remote ON/OFF, output voltage control and parallel operation for higher power applications. Nominal output voltages are 24 V and 48 V with wide adjustment ranges and user defined set-points.
* Single Output: 24 V or 48 V
* Ultra High Efficiency, >92%
* Dual Safety Approvals: UL/EN60950 2nd Edition & UL/EN60601-1 3rd Edition
* Remote ON/OFF Signal
* 5 Year Factory Warranty
额定功率 500 W
输出接口数 1
输出电压 24 V
输出电流 21 A
输出功率 504 W
隔离电压 4 kV
输入电压DC Max 380 V
输入电压DC Min 120 V
输入电压AC Max 264 V
输入电压AC Min 85 V
输出电流Max 21 A
输入电流Min 5 A
工作温度Max 70 ℃
工作温度Min -40 ℃
输入电压 85VAC ~ 264VAC
引脚数 23
高度 39.1 mm
工作温度 -40℃ ~ 70℃
产品生命周期 Active
制造应用 ITE(商业),医疗
RoHS标准 RoHS Compliant
含铅标准 Lead Free
