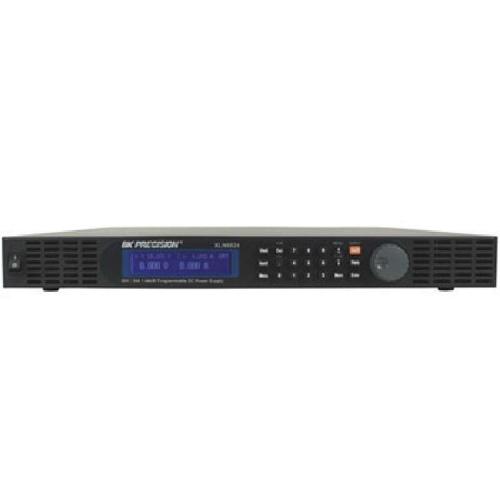

B&K PRECISION XLN6024 稳压电源, 1通道, 60V, 24A, 可编程
The DC power supply delivers up to 1560 watts of clean power on a single output.
- .
- Compact, high density, 1U package
- .
- USB and RS485 interface standard
- .
- GL versions add GPIB and LAN interfaces
- .
- External analog programming interface
- .
- Easy to configure master/slave mode for series & parallel connection of up to 4 units
- .
- Control up to 31 power supplies from one PC synchronized via the RS485 interface
- .
- Application software providing remote control capabilities included
- .
- Programmable voltage and current slew rate allow for "soft starting" of loads
- .
- LabVIEW TM drivers available
- .
- 5 V/1 A fixed output for auxiliary output
额定功率 1.44 kW
输出接口数 1
输入电压DC 100V ~ 240V
输出电压 0VDC ~ 60VDC
输出电流 24.0 A
输入电流 24.0 A
输出功率 1440 W
输出电压Max 60 V
输出电压Min 0 V
输出电流Max 24 A
输出电流Min 0 A
输出功率Max 1440 W
工作温度Max 40 ℃
工作温度Min 0 ℃
电源电压 100VAC ~ 240VAC
电源电压Max 240 VAC
电源电压Min 110 VAC
输入电压 100VAC ~ 240VAC
长度 17 in
宽度 420 mm
高度 1.7 in
重量 9.1 kg
工作温度 3℃ ~ 40℃
产品生命周期 Active
制造应用 测试与测量, Power Management, 电源管理, Test & Measurement, Power Management, Test & Measurement
RoHS标准 Non-Compliant
含铅标准 Contains Lead
REACH SVHC标准 No SVHC
REACH SVHC版本 2013/06/20
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
XLN6024 B&K Precision Corporation B&K精密 | 当前型号 | 当前型号 |
VSP6020 B&K精密 | 类似代替 | XLN6024和VSP6020的区别 |
