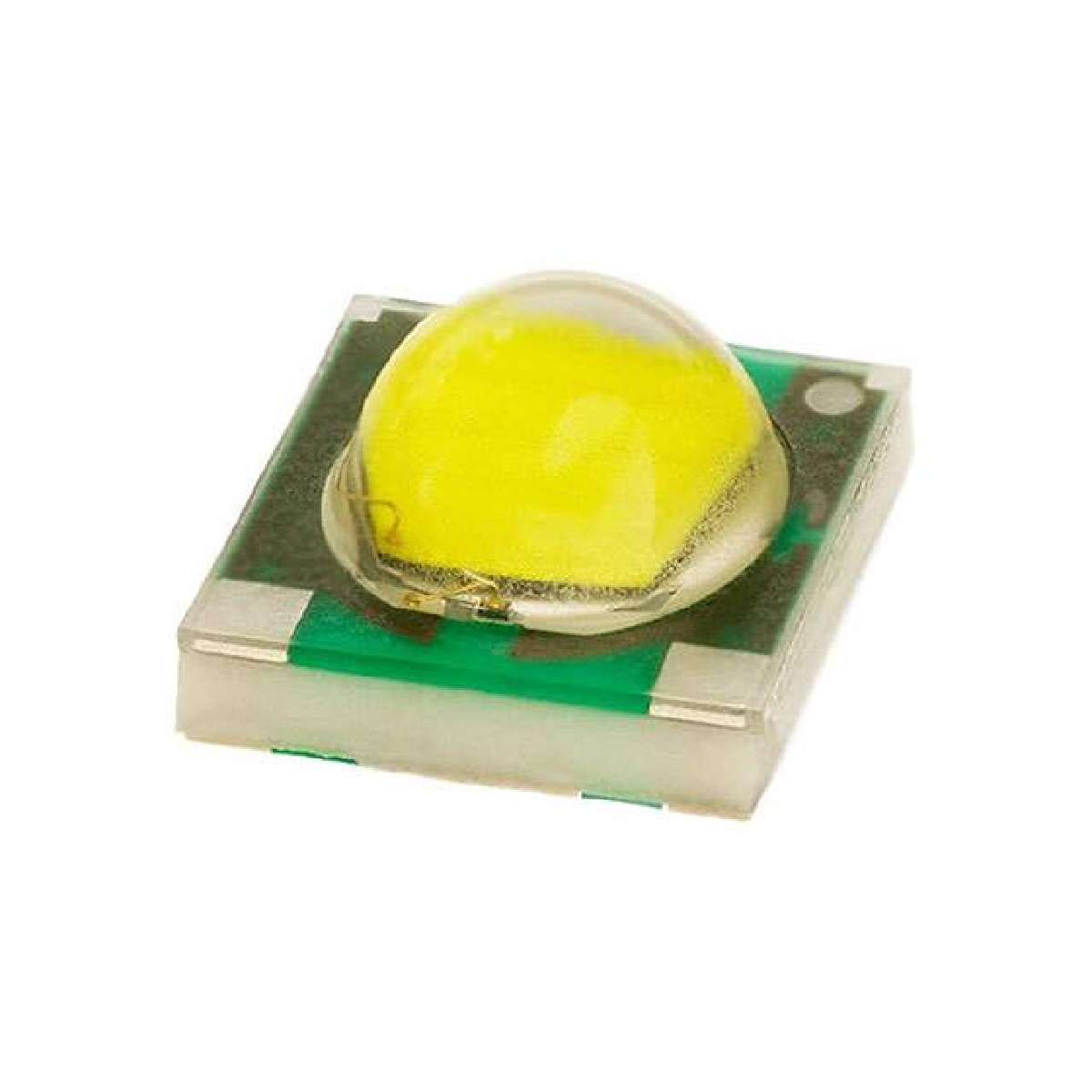

XPGWHT-L1-0000-00EE7

CREE  XPGWHT-L1-0000-00EE7  高亮发光二极管, XLAMP XP-G系列, 暖白色, 125 °, 114 lm, 3000 K, 1.5 A

The XLamp XP-G series is optimized for high lumen directional lighting applications. The XLamp XP-G LED set a new standard for light output and efficacy in a small-form-factor LED. The XLamp XP-G LED is capable of delivering up to 493 lumens at 93 lumens per watt when driven at 1.5A. Others have tried to match its performance but no one has come close. Now, the XLamp XP-G LED is even brighter. Available in higher flux bins, the XLamp XP-G is the first LED with over 10,000 hours of LM-80 long-term testing data, a TM-21 reported lifetime of greater than 60,000 hours and it is still raising the bar for LED performance.

.

Available in white, outdoor white and 80-, 85- and 90-CRI white

.

ANSI-compatible chromaticity bins

.

1500mA Maximum drive current

.

4°C/W Low thermal resistance

.

125° Wide viewing angle

.

Unlimited floor life at

.

Reflow solderable, JEDEC J-STD-020C

.

Electrically neutral thermal path

.

REACH compliant

.

UL recognized component E349212
