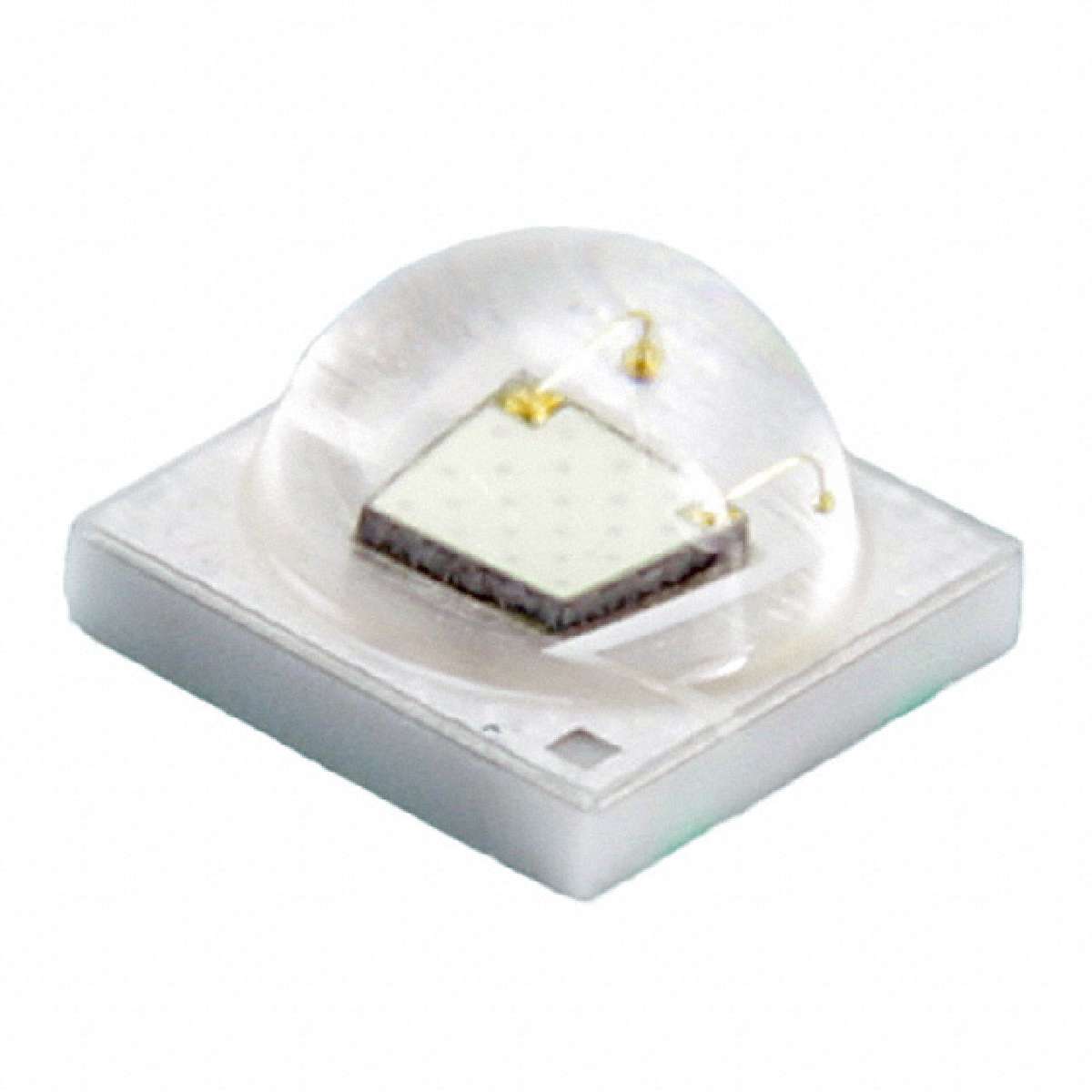

XPEBGR-L1-R250-00E01

CREE  XPEBGR-L1-R250-00E01  高亮发光二极管, XLamp XP-E2系列, 绿色, 135 °, 114 lm, 1 A

The XLamp XP-E2 series delivers high performance and lower system cost to XLamp XP LED designs. Built on Cree"s revolutionary SC³ Technology™ Platform, XP-E2 LEDs deliver higher lumens per watt and lumens per dollar to lower system costs for existing XP-E designs. XP-E2 LEDs leverage the same XP footprint and are optically compatible with the original XP-E LED, providing drop-in-ready performance enhancements to shorten design cycle and improve customer time-to-market. Characterized and binned at 85°C, the XLamp® XP-E2 White LED delivers up to 20% more lumens-per-watt and double the lumens-per-dollar compared to the original XP-E LED. The XP-E2 White LED can enable a broad range of high-lumen applications, from indoor and outdoor to portable and lamp retrofits. The XLamp XP-E2 Colour LEDs deliver up to 88% higher maximum light output compared to alternative high-power colour LEDs, enabling lighting manufacturers to more cost-effectively address a wide spectrum of applications

.

ANSI-compatible chromaticity bins

.

White binned at 85°C

.

1A Maximum drive current

.

As low as 5°C/W low thermal resistance

.

110 to 135° Wide viewing angle

.

Unlimited floor life at

.

Reflow solderable, JEDEC J-STD-020C compatible

.

Electrically neutral thermal path

.

REACH compliant

.

UL recognized component E349212
