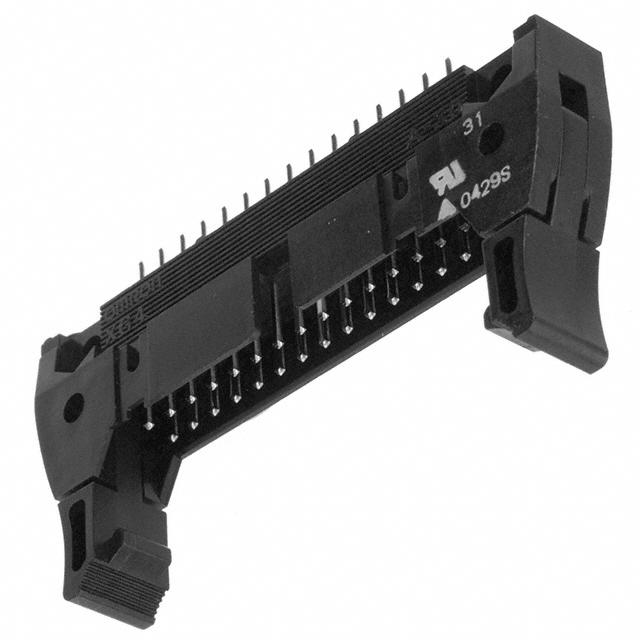

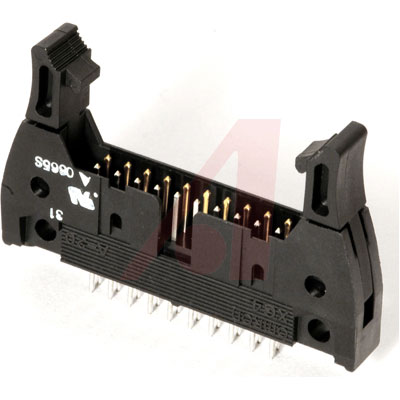

XG4A-3031

OMRON ELECTRONIC COMPONENTS  XG4A-3031  线至板连接器, 公, 30路, 2.54MM

Conn Ejector Header PL 30 POS 2.54mm Solder ST Thru-Hole

得捷:
CONN HEADER VERT 30POS 2.54MM

欧时:
MIL Plugs with Long Locks; straight DIP

立创商城:
2.54mm 每排P数:15 排数:2

贸泽:
集管和线壳 Plug Long Lock 30P Straight 1Polarize

e络盟:
线至板连接器, 公, 30路, 2.54MM

艾睿:
Easily mount this ejector XG4A-3031 header connector from Omron onto your PCB project to support a variety of physical configuration options. This PL connector&s;s 30 contacts that are made out of brass and plated with gold over nickel. This is a 2-row connector. Its pitch is 2.54 mm. It has a maximum voltage rating of 300 VAC. It has a straight body orientation. It has a plug type gender. This device has a maximum current rating of 3 A. It uses the solder termination method. This connector has an operating temperature of -55 to 105 °C. XG4A-3031 is housed in black polybutylene terephthalate. This product is 57.4 mm long, 27 mm tall and 8.5 mm deep.

Allied Electronics:
Headers; Plug Long Lock 30P Straight 1Polarize

Verical:
Conn Ejector Header PL 30 POS 2.54mm Solder ST Top Entry Thru-Hole

Newark:
# OMRON ELECTRONIC COMPONENTS  XG4A-3031  Wire-To-Board Connector, 2.54 mm, 30 Contacts, Header, XG4 Series, Through Hole, 2 Rows

MASTER:
Conn Ejector Header PL 30 POS 2.54mm Solder ST Thru-Hole

Online Components:
Conn Ejector Header PL 30 POS 2.54mm Solder ST Thru-Hole

Electro Sonic:
Conn Ejector Header PL 30 POS 2.54mm Solder ST Thru-Hole

Win Source:
CONN HEADER VERT 30POS 2.54MM / Connector Header Through Hole 30 position 0.100" 2.54mm
