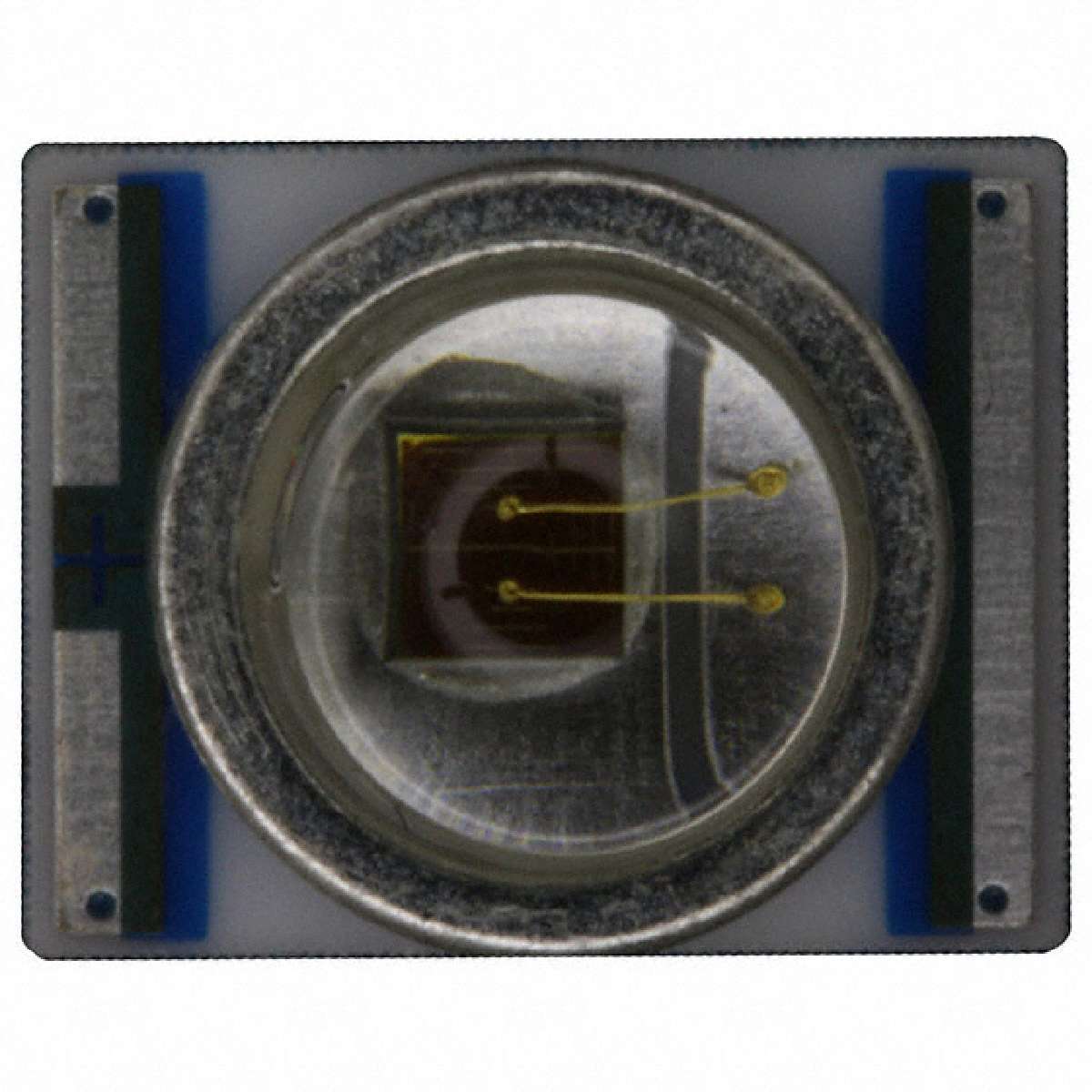

CREE XRCRED-L1-R250-00M01 高亮发光二极管, XLamp XR-C系列, 红色, 620 nm, 90 °, 51.7 lm, 700 mA
The XLamp XR-C series High Power gives lighting designers the flexibility and performance to create the next generation of LED lighting products. XLamp XR-C LED features electrically neutral thermal path, low thermal resistance and support for a wide range of drive currents.
额定功率 2 W
正向电压 2.2 V
波长 620 nm
视角 90°
热阻 15 ℃/W
测试电流 350 mA
正向电流 350 mA
正向电流Max 700 mA
工作温度Max 150 ℃
安装方式 Surface Mount
引脚数 2
封装 SMD-2
长度 9 mm
宽度 7 mm
高度 4.4 mm
封装 SMD-2
颜色 Red
外观颜色 Transparent
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Portable Devices, LED Lighting, Industrial, Commercial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
XRCRED-L1-R250-00M01 CREE 美国科锐 | 当前型号 | 当前型号 |
XRCAMB-L1-0000-00M01-STAR Multicomp | 功能相似 | XRCRED-L1-R250-00M01和XRCAMB-L1-0000-00M01-STAR的区别 |
