双电压监控器与综合型CPU监控系统和电池开关 Dual Voltage Monitor with Intergrated CPU Supervisor and System Battery Switch
DESCRIPTION
The X40020 combines power-on reset control, watch dog timer, supply voltage supervision, and secondary supervision, and manual reset, in one package. This combination lowers system cost, reduces board space requirements, and increases reliability.
FEATURES
• Dual voltage detection and reset assertion
—Three standard reset threshold settings 4.6V/2.9V, 4.6V/2.6V, 2.9V/1.6V
—VTRIP2 programmable down to 0.9V
—Adjust low voltage reset threshold voltages using special programming sequence
—Reset signal valid to VCC = 1V
—Monitor two voltages or detect power fail
• Battery switch backup
• VOUT: 5mA to 50mA from VCC; 250µA from VBATT
• Fault detection register
• Selectable power-on reset timeout 0.05s, 0.2s, 0.4s, 0.8s
• Selectable watchdog timer interval25ms, 200ms, 1.4s, off
• Debounced manual reset input
• Low power CMOS
—25µA typical standby current, watchdog on
—6µA typical standby current, watchdog off
—1µA battery current in backup mode
• 400kHz 2-wire interface
• 2.7V to 5.5V power supply operation
• Available packages

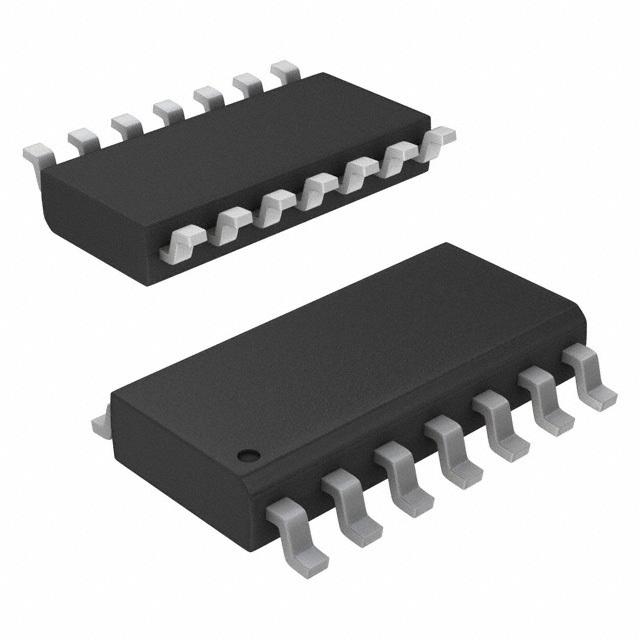

—14-lead SOIC, TSSOP
• Monitor voltages: 5V to 1.6V
• Memory security
• Pb-free plus anneal available RoHS compliant
APPLICATIONS
• Communications equipment
—Routers, hubs, switches
—Disk arrays
• Industrial systems
—Process control
—Intelligent instrumentation
• Computer systems
—Desktop computers
—Network servers
