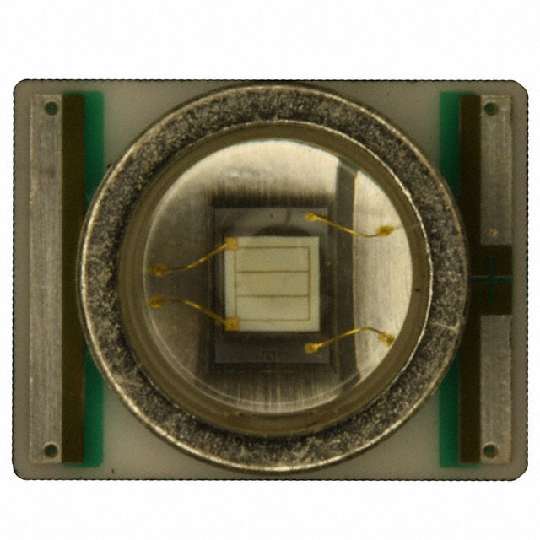

CREE XREBLU-L1-R250-00K01 发光二极管, Xlamp, 蓝色, SMD, 6.8mm, 1 A, 3.3 V, 485 nm
The is a X-Lamp® XR-E blue . it is leading the LED lighting revolution with its unprecedented lighting-class brightness, efficacy, lifetime and quality of light. This lighting-class feature enables the XLamp XR-E LED to replace many traditional light sources and save money with energy efficient light and long lifetimes. Cree XLamp LED bring high performance and quality of light to a wide range of lighting applications, including colour-changing lighting, portable and personal lighting, outdoor lighting, indoor directional lighting, commercial lighting and emergency-vehicle lighting.
额定功率 4 W
正向电压 3.3 V
波长 485 nm
视角 100°
热阻 8 ℃/W
测试电流 350 mA
正向电流 1 A
工作温度Max 150 ℃
安装方式 Surface Mount
引脚数 2
封装 SMD-2
长度 9 mm
宽度 7 mm
高度 4.4 mm
封装 SMD-2
颜色 Blue
产品生命周期 Discontinued at Digi-Key
包装方式 Cut Tape CT
制造应用 LED Lighting, Signalling
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
