XRCBLU-L1-R250-00H01

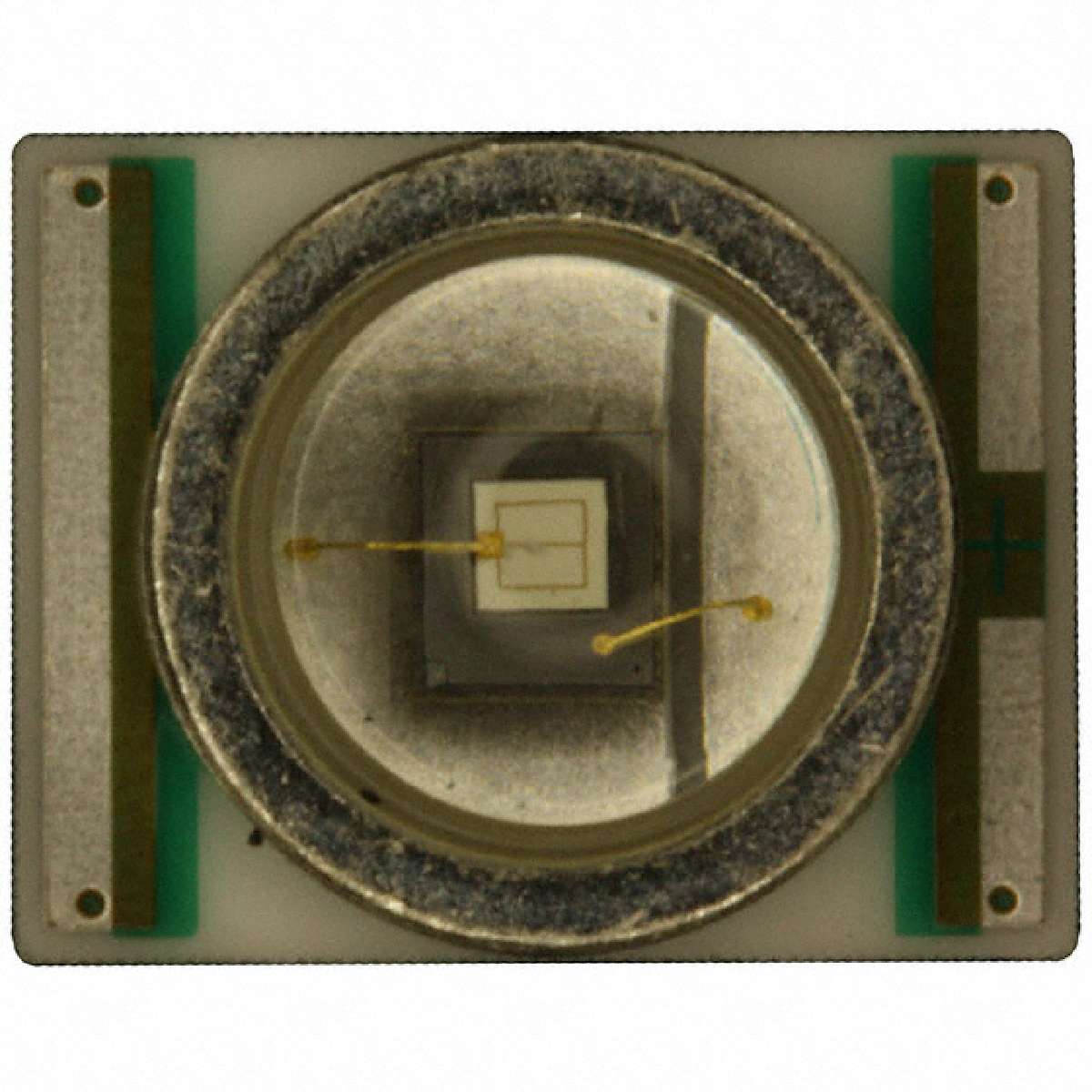

CREE  XRCBLU-L1-R250-00H01  高亮发光二极管, XLamp XR-C系列, 蓝色, 475 nm, 100 °, 23.5 lm, 500 mA

The XLamp XR-C series High Power gives lighting designers the flexibility and performance to create the next generation of LED lighting products. XLamp XR-C LED features electrically neutral thermal path, low thermal resistance and support for a wide range of drive currents.

.

Available in white 2600 to 10,000K CCT, royal blue, blue, green, amber, red-orange & red

.

Up to 700mA Maximum drive current

.

Low thermal resistance as low as 12°C/W

.

150°C Maximum junction temperature

.

Industry-leading JEDEC standard pre-qualification testing

.

Reflow solderable, JEDEC J-STD-020C compatible

.

Electrically neutral thermal path

.

Lumen maintenance of greater than 70% after 50,000 hours

.

REACH compliant

.

UL recognized component E349212
