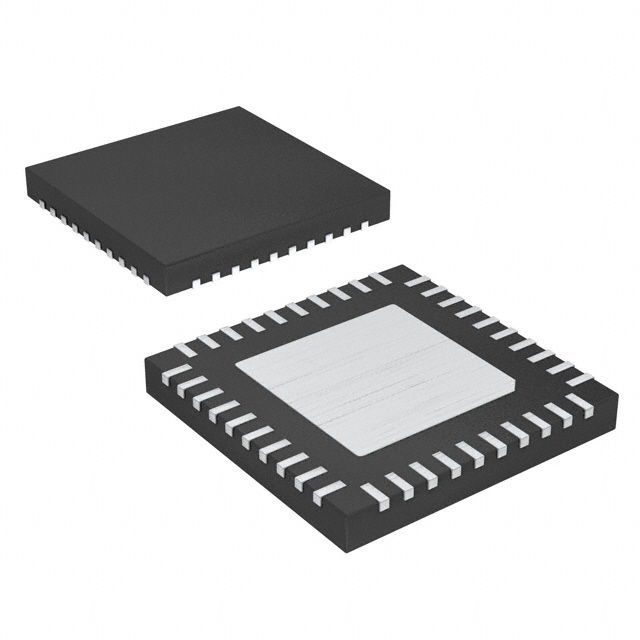

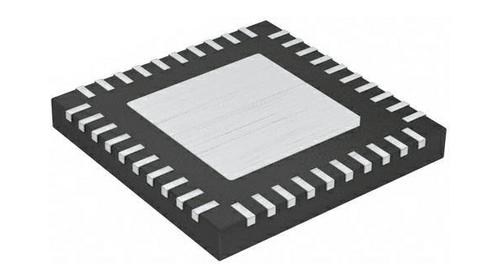

XRP 系列 20 V 50 mA 1.5 MHz 四通道输出 数字 PWM 降压控制器 - TQFN-40
Effectively change the level of your DC voltage with the dpwm dc to dc /step down DC voltage controller from EXAR. This DC voltage controller has 4 outputs. With an output that has a voltage of 0.9 to 5.1 V, this is power management at its best. This DC voltage controller has an input voltage of 6.5 to 20 V. This part offers a switching frequency of 300 to 1500 kHz in order to work properly. This DC voltage controller has a minimum operating temperature of -40 °C and a maximum of 125 °C.
电源电压DC 6.50V min
输出接口数 4
输出电压 0.9V ~ 5.1V
输出电流 5.00 A
开关频率 300kHz ~ 1.5MHz
占空比 85 %
输入电压Max 20 V
输入电压Min 6.5 V
最大占空比 0.85
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 6V ~ 20V
电源电压Max 20 V
电源电压Min 6.5 V
输入电压 6.5V ~ 20V

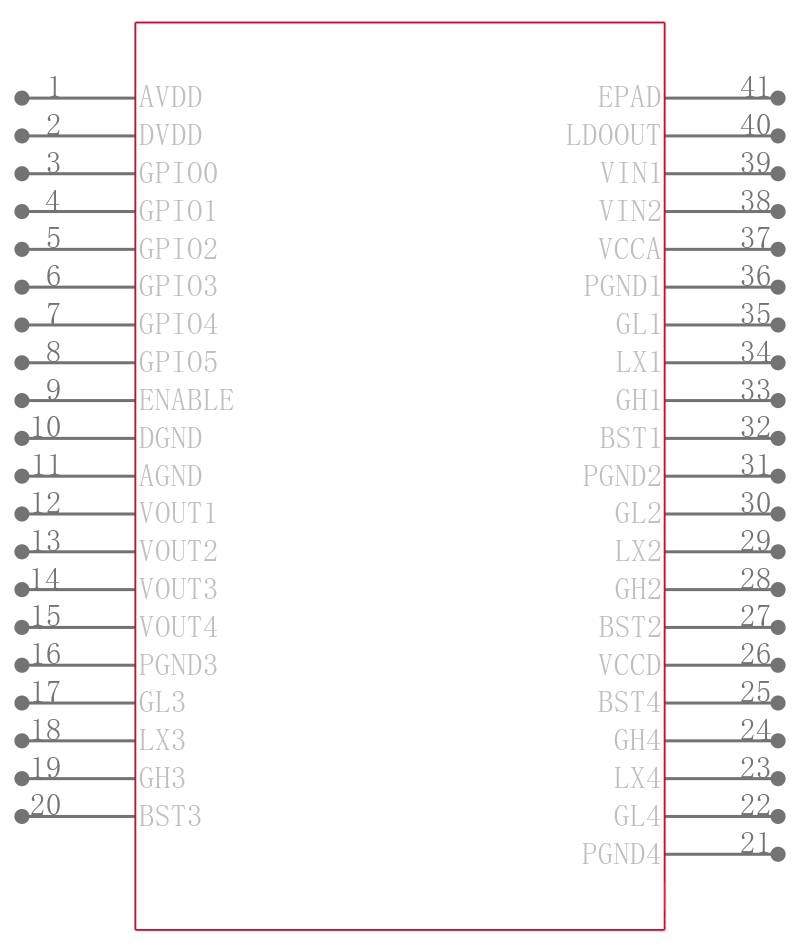

引脚数 40

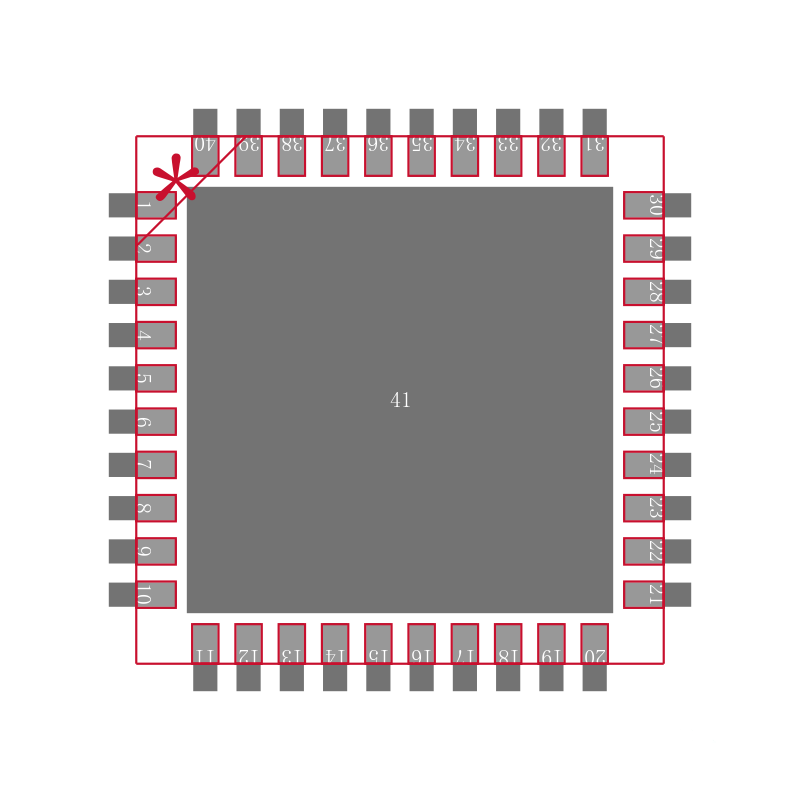

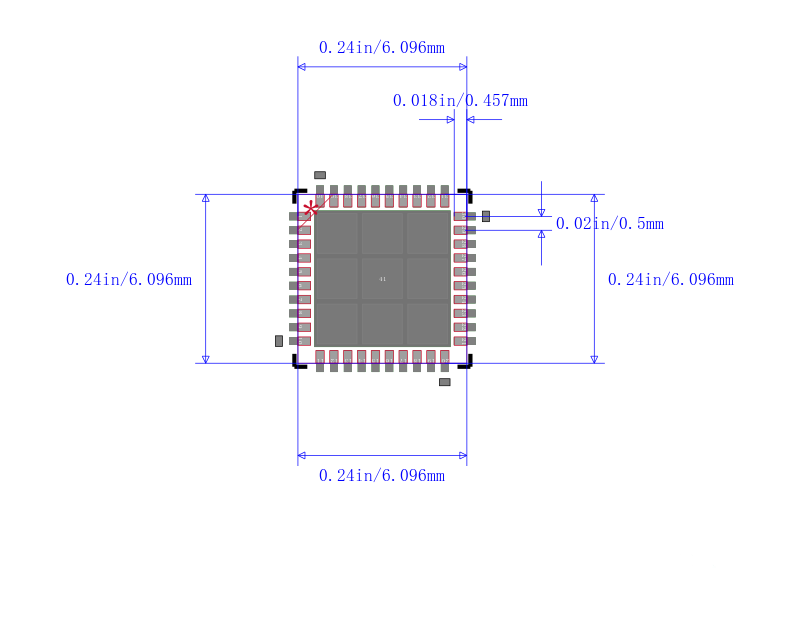

封装 TQFN-40
封装 TQFN-40
工作温度 -40℃ ~ 125℃ TJ
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
