USB Power Switch Single 5.5V 1.15A 8Pin SOIC N Bulk
Use this high side switch and usb power distribution switch USB powered Ethernet switch from EXAR to control which one of your devices draws power. This will operate at a minimum voltage of 1.75 V and a maximum voltage of 5.5 V, making it easy to control the power in your circuit. Its current limit is 1.15 A. This product comes packaged in bulk, so the parts will be stored loosely. This USB powered network switch has an operating temperature range of -40 °C to 85 °C.
输出接口数 1
输入电压DC 5.50 V
上升时间 2000 µs
输入电压Max 5.5 V
输入电压Min 1.75 V
输出电流Max 900 mA
下降时间 22 µs
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 1.75V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 1.8 V
输入电压 1.75V ~ 5.5V

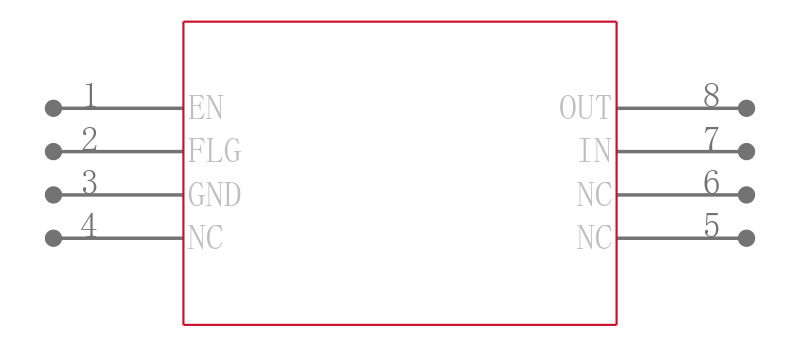

引脚数 8

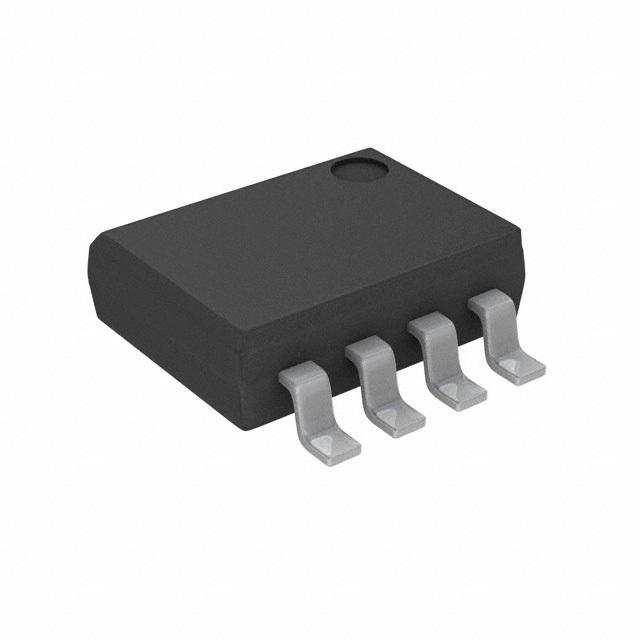

封装 SOIC-8
高度 1.65 mm
封装 SOIC-8
工作温度 -40℃ ~ 85℃
产品生命周期 Obsolete
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
