XEF216-512-TQ128-C20概述

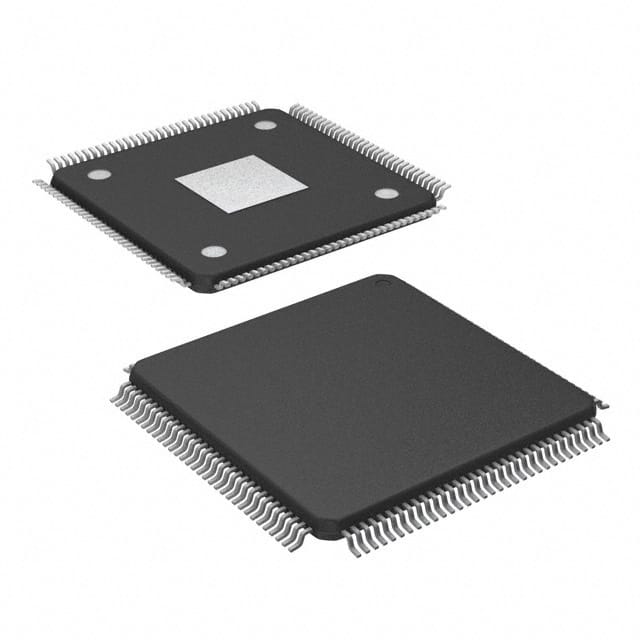

XMOS XEF216-512-TQ128-C20 微控制器, 32位, 16核, 以太网, xCORE, 2 MB, 512 KB, 128 引脚, TQFP
The is a xCORE-200 series comprehensive 32-bit Multicore Microcontroller that brings the low latency and timing determinism of the xCORE architecture to mainstream embedded applications. Unlike conventional microcontrollers, xCORE multicore microcontrollers execute multiple real-time tasks simultaneously and communicate between tasks using a high speed network. Because xCORE multicore microcontrollers are completely deterministic, you can write software to implement functions that traditionally require dedicated hardware.
- .
- Multicore MCU with advanced multi-core RISC architecture
- .
- 16 Real-time logical cores on 2 xCORE tiles
- .
- Cores share up to 1000MIPS
- .
- 167 High-density 16/32-bit instructions
- .
- USB PHY, fully compliant with USB 2.0 specification
- .
- RGMII support, compliant with RGMII v1.3 specification
- .
- 512kB Internal single-cycle SRAM
- .
- 16kB Internal OTP
- .
- 2MB Internal flash for application code and overlays
- .
- 12 Clock blocks
- .
- 20 Timers
- .
- 8 Locks
- .
- JTAG Module for on-chip debug
- .
- Programming lock disables debug and prevents read-back of memory contents
- .
- AES bootloader ensures secrecy of IP held on external flash memory
- .
- 570mA typical Power consumption
