数字电位计, Intersil### 数字电位计 - Intersil
Quad Digitally Controlled Potentiometer XDCP™
The X9241A integrates four digitally controlled potentiometers XDCP on a monolithic CMOS integrated microcircuit.
The digitally controlled potentiometer is implemented using 63 resistive elements in a series array. Between each element are tap points connected to the wiper terminal through switches. The position of the wiper on the array is controlled by the user through the 2-wire bus interface. Each potentiometer has associated with it a volatile Wiper Counter Register WCR and 4 nonvolatile Data Registers DR0:DR3 that can be directly written to and read by the user. The contents of the WCR controls the position of the wiper on the resistor array through the switches. Power up recalls the contents of DR0 to the WCR.
Features
• Four potentiometers in one package
• 2-wire serial interface
• Register oriented format
- Direct read/write/transfer of wiper positions
- Store as many as four positions per potentiometer
• Terminal Voltages: +5V, -3.0V
• Cascade resistor arrays
• Low power CMOS
• High Reliability
- Endurance–100,000 data changes per bit per register
- Register data retention–100 years
• 16-bytes of nonvolatile memory
• 3 resistor array values
- 2kΩ to 50kΩ mask programmable
- Cascadable for values of 500Ω to 200kΩ
• Resolution: 64 taps each pot
• 20 Ld plastic DIP, 20 Ld TSSOP and 20 Ld SOIC packages
• Pb-free plus anneal available RoHS compliant
频率 100 KHz
电源电压DC 4.50V min
额定电压DC 5.50 V
容差 ±20 %
供电电流 3 mA
电路数 4
通道数 4
针脚数 64
时钟频率 100kHz max
电阻 10 kΩ
阻值偏差 ±20 %
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 20

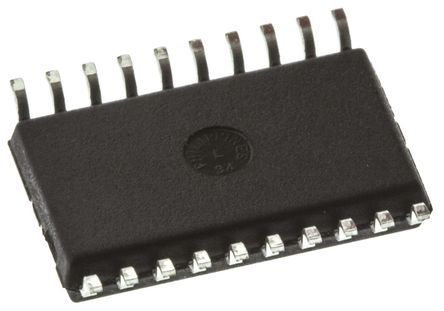

封装 SOIC-20
长度 12.8 mm
宽度 7.49 mm
高度 2.34 mm
封装 SOIC-20
工作温度 -40℃ ~ 85℃
温度系数 ±300 ppm/℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
X9241AWSIZ Intersil 英特矽尔 | 当前型号 | 当前型号 |
X9241AWSZ 英特矽尔 | 类似代替 | X9241AWSIZ和X9241AWSZ的区别 |
X9241AWS 英特矽尔 | 类似代替 | X9241AWSIZ和X9241AWS的区别 |
X9241AWSIZT1 英特矽尔 | 类似代替 | X9241AWSIZ和X9241AWSIZT1的区别 |
