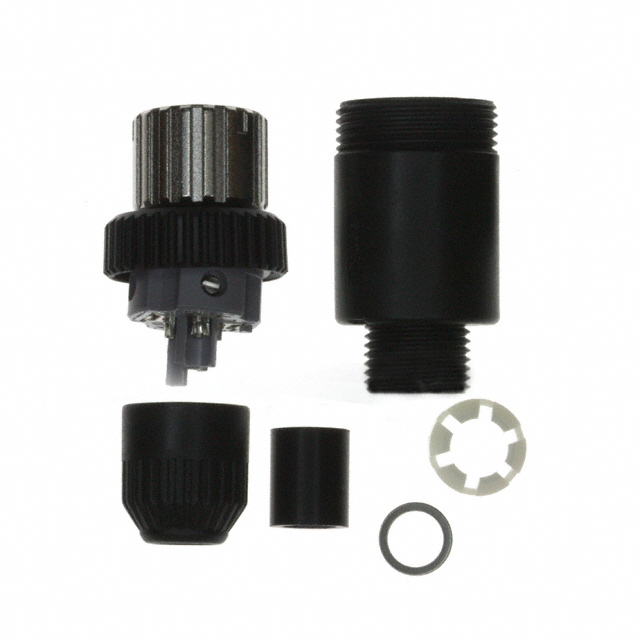

XS5C-D4S1概述
Conn Circular SKT 4POS Screw ST Cable Mount 4 Terminal 1Port
** XS5C/G Series Pressure Welded Connectors**
Omron XS5C/G pressure welded circular connectors are designed to be easy to assemble using the mininmal amount of tooling, wires from 26 to 18 AWG can be pressure welded, this is simply the self termination of the wires within an IDC recess as the connector is assembled together, there is a visual tightened position thus eliminating the need for torque tools. These circular connectors can handle cable diameters between 3 to 8mm, for 5 to 8mm cable remove the tabbed waterproof bushing in the rear of the connector.
