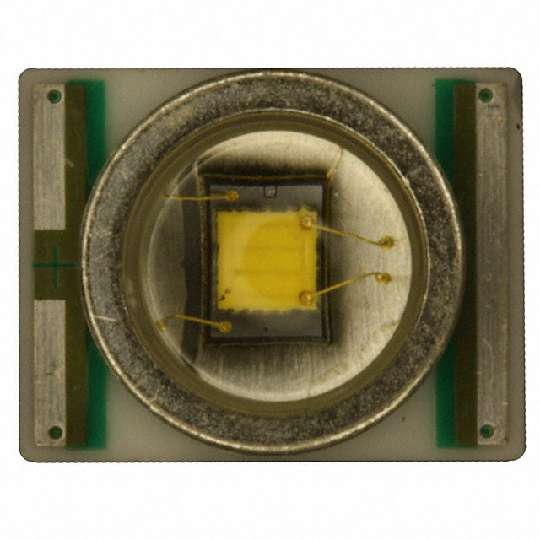

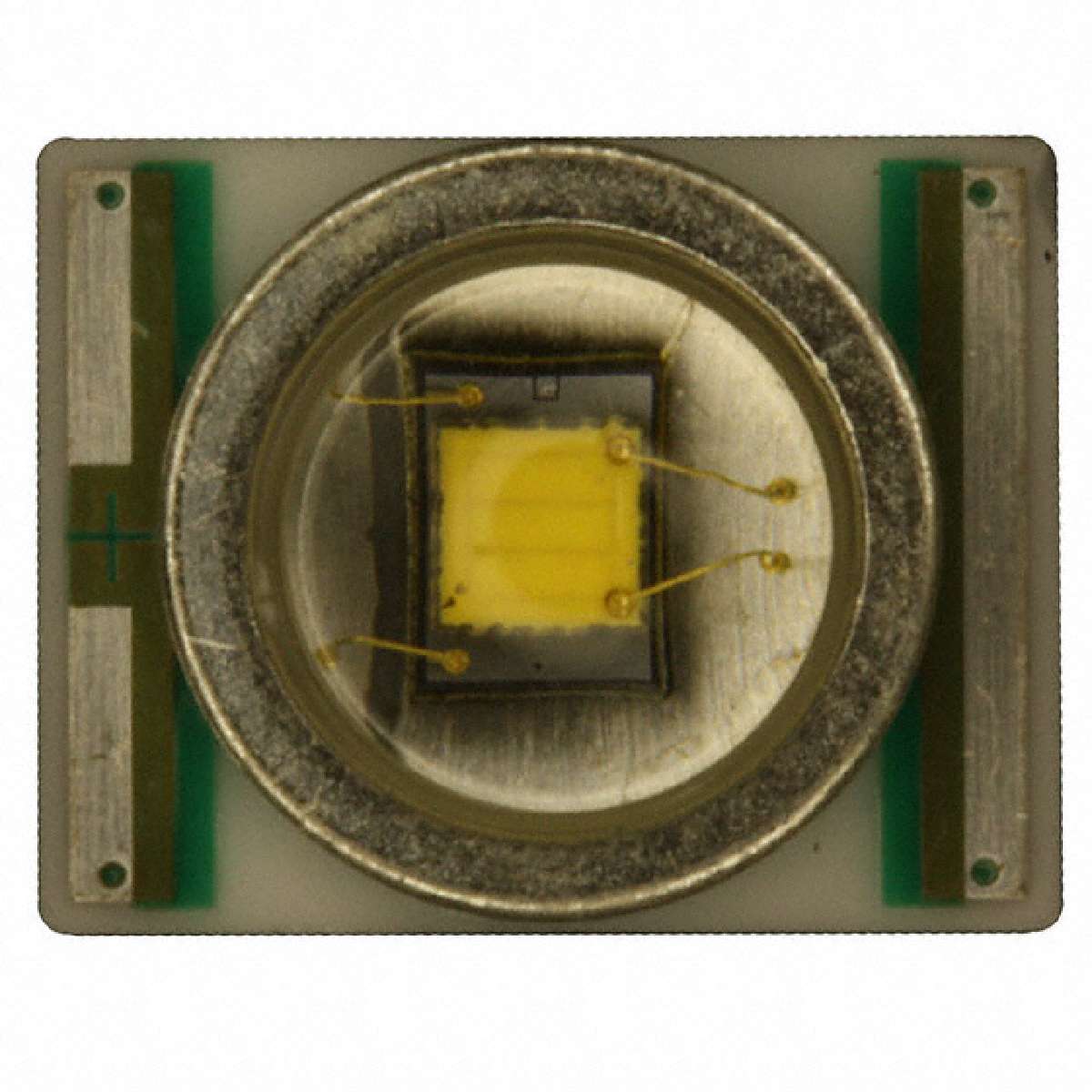

XREWHT-L1-R250-009E5

LED Lamp; Viewing Angle: 90°; Forward Current: 700mA; Forward Voltage: 3.5V; LED Color: White; Luminous Flux: 80.6lm

The XLamp XR-E series lighting-class Power is leading the LED lighting revolution with its unprecedented lighting-class brightness, efficacy, lifetime and quality of light. This lighting-class feature enables the XLamp XR-E LED to replace many traditional light sources and it is energy-efficient light and long lifetimes.

.

Available in white 2600 to 10,000K CCT, blue, royal blue and green

.

Up to 1000mA Maximum drive current

.

150°C Maximum junction temperature

.

Industry-leading JEDEC standard pre-qualification testing

.

Reflow solderable, JEDEC J-STD-020C compatible

.

Electrically neutral thermal path

.

Lumen maintenance of greater than 70% after 50,000 hours

.

REACH compliant

.

UL recognized component E349212
