LDO 3V OUTPUT, CMOS 28V, SOT25-5; Voltage Regulator Type: LDO; Voltage, Input Max: 28V; Voltage, Output Max: 3V; Ma...
•Voltage Regulators with Stand-by Function - Input Voltage: 28V •Max Output Current : More than 150mA 200mA limit VIN=VOUT+3.0V •Dropout Voltage •Input Voltage Range •Output Voltage •Setting Range : 300mV@IOUT=20mA : 2.0V~28.0V : 2.0V~12.0V 0.1V increments 2.0V~23V with external resistors •High Accuracy :±2% •:±1% optional for XC6216 series •Low Power Consumption : 5μA •Stand-by Current : Less than 0.1μA •High Ripple Rejection : 30dB@1kHz •Operating Temperature : -40℃~+85℃ •Low ESR Capacitor : Ceramic Capacitor Compatible •Current Limit Circuit Built-In •Thermal Shutdown Circuit Built-In
输出接口数 1
输出电压 3 V
输出电流 300 mA
跌落电压 300 mV
输入电压Max 28 V
输入电压Min 2 V
输出电流Max 150 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
精度 2 %
电源电压Max 28 V
电源电压Min 2 V
安装方式 Surface Mount

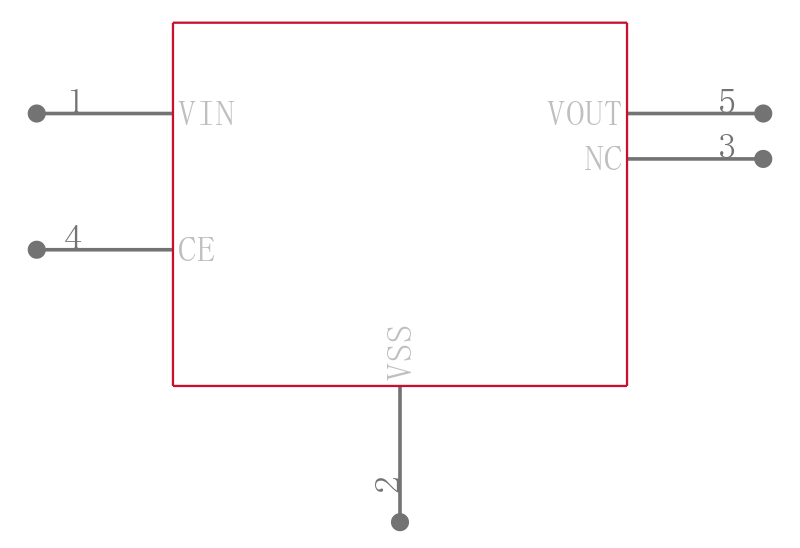

引脚数 5

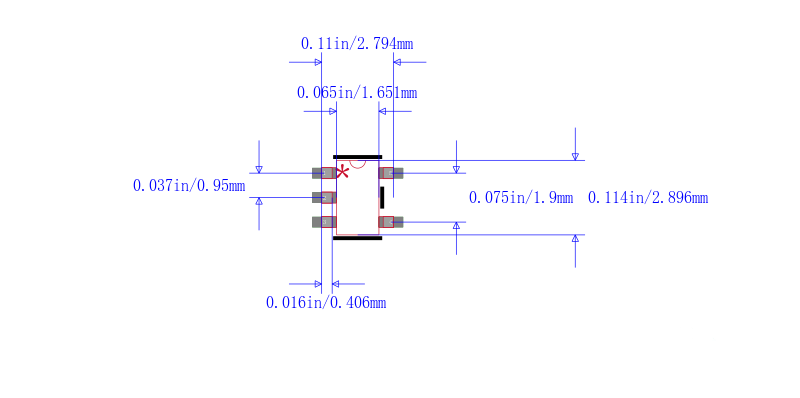

封装 SOT-25
封装 SOT-25
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Each
RoHS标准 RoHS Compliant
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
XC6216B302MR Torex Semiconductor 特瑞仕 | 当前型号 | 当前型号 |
XC6216B332MR 特瑞仕 | 类似代替 | XC6216B302MR和XC6216B332MR的区别 |
XC6216B332ER-G 特瑞仕 | 功能相似 | XC6216B302MR和XC6216B332ER-G的区别 |
XC6216D302PR-G 特瑞仕 | 功能相似 | XC6216B302MR和XC6216D302PR-G的区别 |
