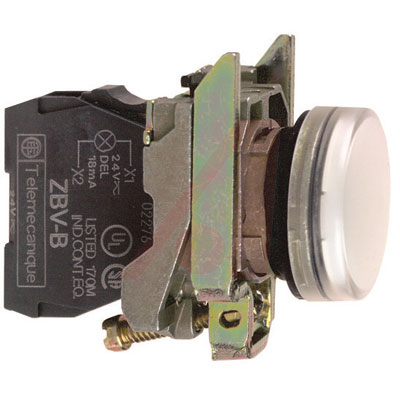

XB4BV61

发光二极管指示器 面板安装, 250 VAC, 22 mm, IP66, NEMA 4X, NEMA 13

The from is a white complete pilot light Ø22 plain lens for BA9s bulb

.

Chromium plated bezel material, zamak fixing collar material

.

Round shape of signalling unit head, steady signalling type

.

Dimension of 47mm x 30mm 55mm H x W x D

.

Resistance to high pressure washer is 7000000Pa at 55°C, distance of 0.1m

.

250V degree of pollution 3 conforming to EN 60947-1, IP66 conforming to IEC 60529

.

Rated impulse withstand voltage of 4KV conforming to EN 60947-1

.

NEMA 4X and NEMA 13 degree of protection & IK05 conforming to IEC 50102

.

Vibration resistance of 5gn f = 12Hz to 500Hz conforming to IEC 60068-2-6

.

Shock resistance of 50gn at 11ms for half sine wave acceleration conforming to IEC 60068-2-27

.

Shock resistance of 30gn at 18ms for half sine wave acceleration conforming to IEC 60068-2-27
