XC3S400-5TQG144C

XILINX  XC3S400-5TQG144C  受限产品, 芯片, FPGA, SPARTAN-3, 8064单元, 144TQFP

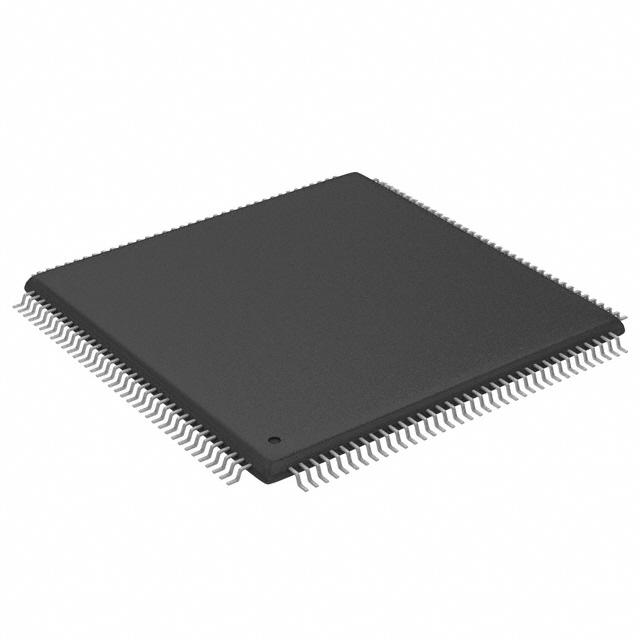

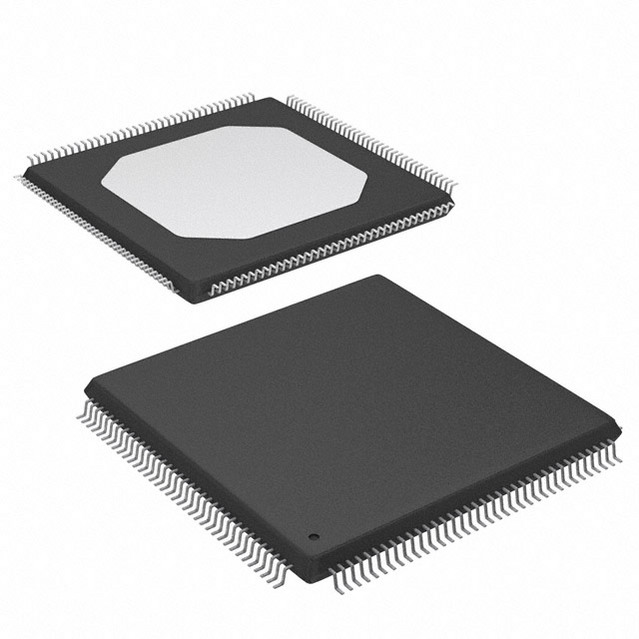

The is a Spartan-3 FPGA device in 144 pin TQFP package. The Spartan-3 family builds on success of earlier Spartan-IIE family by increasing amount of logic resources, capacity of internal RAM, total number of I/Os and overall level of performance as well as by improving clock management functions. The Spartan-3 FPGA enhancements combined with advanced process technology delivers more functionality and bandwidth. The Spartan-3 family is a superior alternative to mask programmed ASICs.

.

High performance with speed grade 5

.

400K system gates

.

8064 logic cells

.

896 configurable logic blocks CLB

.

56Kbit of RAM

.

97 maximum user I/O and 46 maximum differential I/O pairs

.

Internal supply voltage range from 1.14V to 1.26V

.

Junction temperature range from 0°C to 85°C

.

Frequency for CLKIN input is 280MHz

.

Fully supported by ISE and WebPACK software development systems
