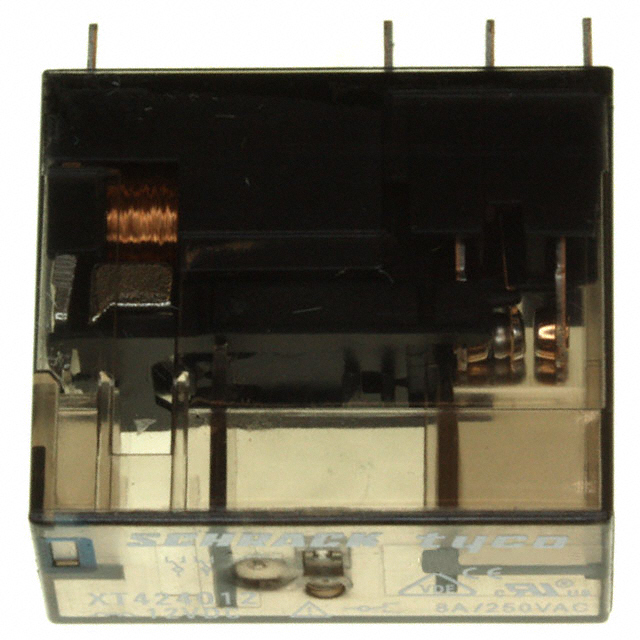

继电器, DPDT, 12VDC, 360Ω
Electromechanical Relay 12VDC 360Ohm 15A DPDT29x13x26.7mm Plug-In General Purpose Relay
得捷:
RELAY GEN PURPOSE DPDT 8A 12V
e络盟:
继电器, DPDT, 12VDC, 360Ω
艾睿:
Panel/Plug-in Relays
Verical:
Electromechanical Relay 12VDC 360Ohm 15A DPDT 29mm 13mm 26.7mm Plug-In General Purpose Relay
MASTER:
Power Relay 12VDC 8A DPDT29x13x25.6mm Socket
Online Components:
Electromechanical Relay 12VDC 360Ohm 15A DPDT29x13x26.7mm Plug-In General Purpose Relay
Electro Sonic:
Power Relay 12VDC 8A DPDT29x13x25.6mm Socket
额定电压AC 400 V
触点类型 DPDT
触点额定电流 15 A
线圈电压 12 VDC
线圈电流 33.3 mA
线圈电阻 360 Ω
载流 8.00 A
额定电流Max 15 A
线圈电压DC 12 V
额定功率Max 2 KVA
工作温度Max 70 ℃
工作温度Min -40 ℃
额定电压AC Max 400 V
安装方式 Plug In
引脚数 8
长度 29 mm
宽度 13.7 mm
高度 26.7 mm
触点材质 Silver Nickel
工作温度 -40℃ ~ 70℃
产品生命周期 Unknown
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536490080
