OMRON ELECTRONIC COMPONENTS XF2M34151AR100 连接器, FFC/ FPC板, XF2M系列, 34 触点, 插座, 0.5 mm, 表面安装 , 顶部、底部

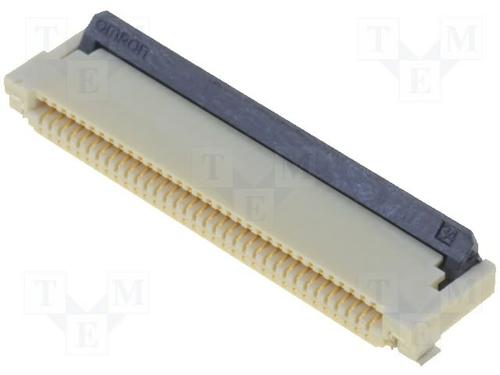

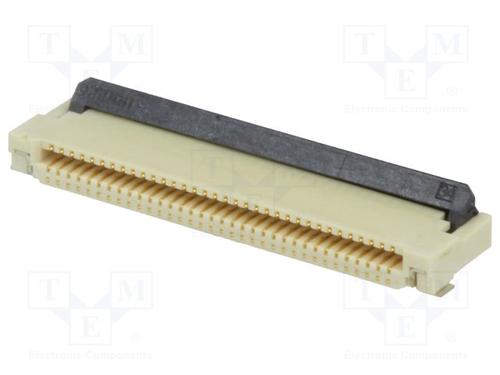

The is a 34-position 1-row Rotary Backlock Connector with gold-plated copper alloy contacts and a natural colour LCP resin housing. It has black LCP resin slider and a tin-plated copper alloy hold-down. It is suitable for use with 0.3mm thickness FPC/FFC.
- .
- High-reliability rotary-lock and superior work efficiency
- .
- Halogen-free
- .
- 0.5A AC/DC Rated current
- .
- 50VAC/DC Rated voltage
- .
- 50mR Maximum contact resistance at 20mVDC maximum, 100mA maximum
- .
- 100MR at 250VDC Minimum insulation resistance
触点数 34
极性 Female
触点电镀 Gold
绝缘电阻 100 MΩ
排数 1
方向 Horizontal
拔插次数 20
额定电流Max 0.5 A
工作温度Max 85 ℃
工作温度Min -30 ℃
接触电阻Max 50 mΩ
安装方式 Surface Mount
引脚数 34
长度 21.1 mm
宽度 5.9 mm
高度 2.1 mm
外壳颜色 Natural
触点材质 Copper
包装方式 Tape & Reel TR
制造应用 Industrial
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
XF2M34151AR100 Omron 欧姆龙 | 当前型号 | 当前型号 |
3-1734592-4 泰科 | 功能相似 | XF2M34151AR100和3-1734592-4的区别 |
FH12-34S-0.5SH55 广濑 | 功能相似 | XF2M34151AR100和FH12-34S-0.5SH55的区别 |
54104-3431 莫仕 | 功能相似 | XF2M34151AR100和54104-3431的区别 |
