连接器 Socket+NoLockStrain ReliefSet 20Pin 1Plr 盒装
20 位置矩形连 插座 IDC 镀金 28AWG
得捷:
CONN RCPT 20POS IDC 28AWG GOLD
立创商城:
2.54mm 每排P数:10 排数:2 两件套
贸泽:
集管和线壳 Socket+NoLockStrain ReliefSet 20Pin 1Plr
艾睿:

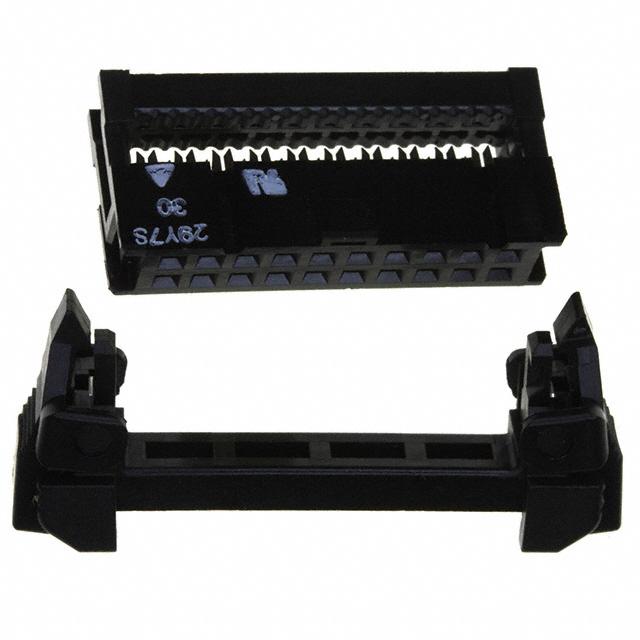

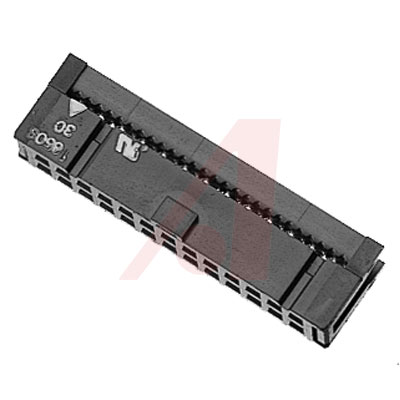

Safety is an important concern when designing electronic devices. Omron&s;s idc connector XG4M-2030-U header connector helps protect your equipment from accidental shortages. This SKT connector&s;s 20 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a socket type gender. It has a right angle body orientation. Its pitch is 2.54 mm. This is a 2-row connector. It has a maximum voltage rating of 250 VAC. This device has a maximum current rating of 1 A. XG4M-2030-U is housed in black polybutylene terephthalate. This product is 30 mm long. It uses the idt termination method. This connector has an operating temperature of -55 to 105 °C.
Allied Electronics:
Headers; Socket+NoLockStrain ReliefSet 20Pin 1Plr
安富利:
Conn IDC Connector SKT 20 POS 2.54mm IDT RA Cable Mount
Chip1Stop:
Conn IDC Connector SKT 20 POS 2.54mm IDT RA Cable Mount
Verical:
Conn IDC Connector SKT 20 POS 2.54mm IDT RA Cable Mount
Newark:
# OMRON ELECTRONIC COMPONENTS XG4M-2030-U Wire-To-Board Connector, 2.54 mm, 20 Contacts, Receptacle, XG4 Series, IDC / IDT, 2 Rows
MASTER:
Conn IDC Connector SKT 20 POS 2.54mm IDT RA Cable Mount
Online Components:
Conn IDC Connector SKT 20 POS 2.54mm IDT RA Cable Mount
Electro Sonic:
Conn IDC Connector SKT 20 POS 2.54mm IDT RA Cable Mount
触点数 20
极性 Female
线规 28 AWG
触点电镀 Gold
绝缘电阻 >1000MΩ @500VDC
排数 2
针脚数 20
额定电流Max 1 A
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压Max 250 VAC
接触电阻Max 20 mΩ
封装 -
长度 30 mm
封装 -
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536694040
