XG4C-3434

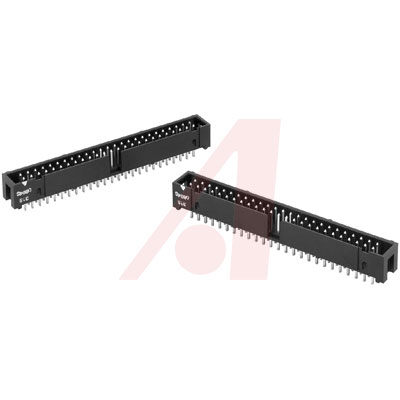

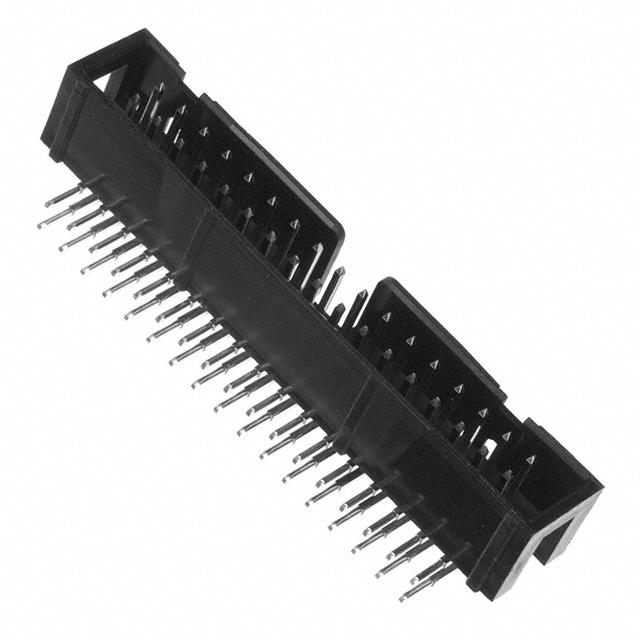

OMRON ELECTRONIC COMPONENTS XG4C-3434 Wire-To-Board Connector, 2.54mm, 34Contacts, Header, XG4 Series, Through Hole, 2Rows

针座 通孔，直角 34 位置 0.100"（2.54mm）

得捷:
CONN HEADER R/A 34POS 2.54MM

艾睿:
Look no further than the shrouded XG4C-3434 header connector from Omron, a great tool to use when board-to-board interconnects is required. This PL connector&s;s 34 contacts that are made out of brass and plated with gold over nickel. It has a maximum voltage rating of 300 VAC. Its pitch is 2.54 mm. It has a plug type gender. It has a right angle body orientation. This is a 2-row connector. This device has a maximum current rating of 3 A. It uses the solder termination method. XG4C-3434 is housed in black polybutylene terephthalate. This product is 50.5 mm long, 8.5 mm tall and 12.2 mm deep. This connector has an operating temperature of -55 to 105 °C.

Allied Electronics:
Connector PLUG 34POS 3A RT ANGL DIP

Chip1Stop:
Conn Shrouded Header PL 34 POS 2.54mm Solder RA Thru-Hole

Verical:
Conn Shrouded Header PL 34 POS 2.54mm Solder RA Side Entry Thru-Hole

Newark:
# OMRON ELECTRONIC COMPONENTS  XG4C-3434  Wire-To-Board Connector, 2.54 mm, 34 Contacts, Header, XG4 Series, Through Hole, 2 Rows

MASTER:
Conn Shrouded Header PL 34 POS 2.54mm Solder RA Thru-Hole

Online Components:
Conn Shrouded Header PL 34 POS 2.54mm Solder RA Thru-Hole

Electro Sonic:
Conn Shrouded Header PL 34 POS 2.54mm Solder RA Thru-Hole

Win Source:
CONN HEADER R/A 34POS 2.54MM / Connector Header Through Hole, Right Angle 34 position 0.100" 2.54mm
